Removal and Installation

Inside Air Temperature Sensor Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove audio unit from instrument panel referring to Service and Repair Audio Unit Removal and Installation (If Equipped).
3) Remove combination meter from instrument panel referring to Service and Repair Combination Meter Removal and Installation.

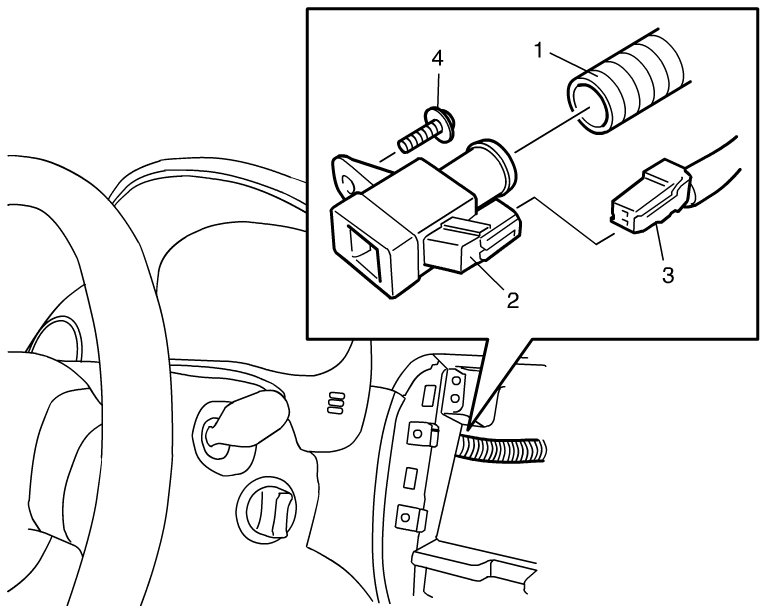

4) Remove connector (3) and aspirator hose (1) from inside air temperature sensor (2).
5) Remove inside air temperature sensor (2) from instrument panel by removing screw (4).






Installation

Inside Air Temperature Sensor Inspection:Auto A/C

Reverse removal procedure.
