Symptom Related Diagnostic Procedures

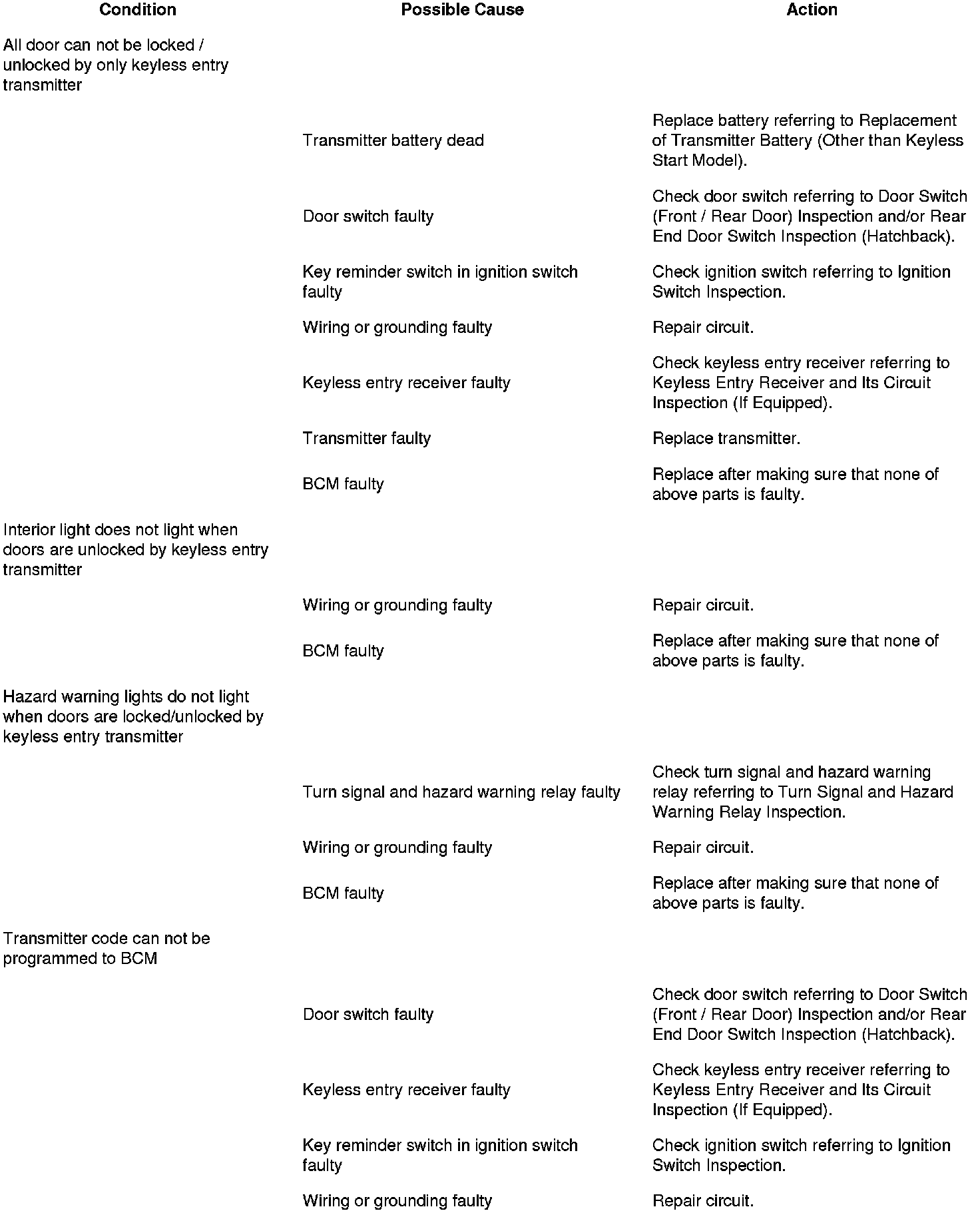

Keyless Entry System Symptom Diagnosis (If Equipped)

NOTE:

- Confirm that power door lock system is in good condition before referring to the following possible causes.
- Check each part in the order from the top of the following list.
