Rear Wiper Relay Removal and Installation




Rear Wiper Relay Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.

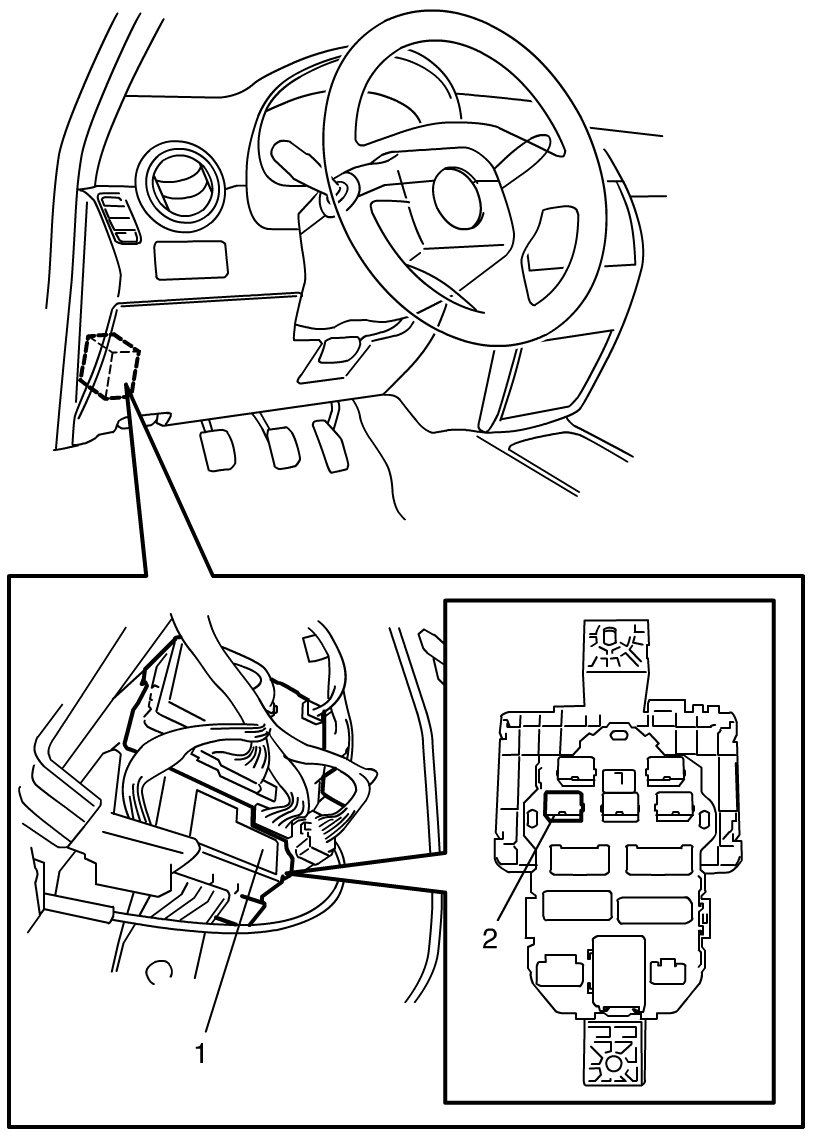

2) Remove junction block (1).
3) Remove rear wiper relay (2) from junction block.






Installation

Rear Wiper Relay Inspection

Reverse removal procedure for installation.
