Windshield Washer Reservoir: Service and Repair

Washer Tank and Washer Pump Removal and Installation

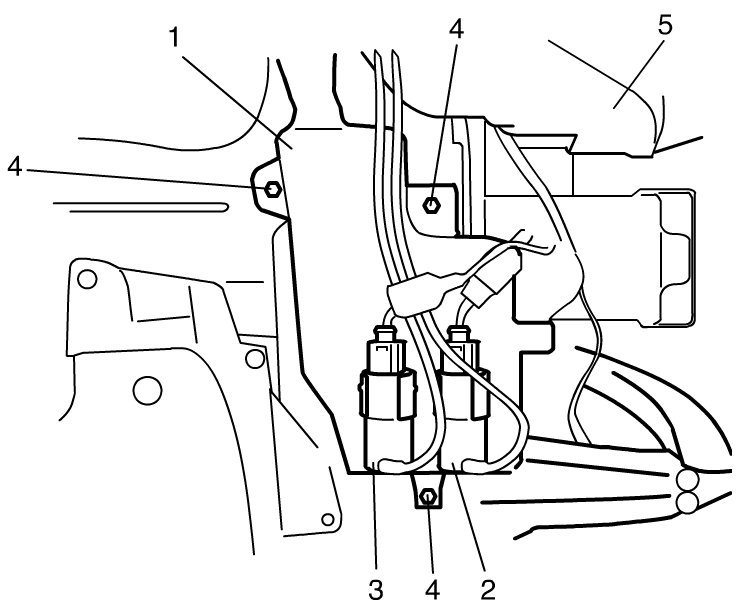

Wiper and Washer Components

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front bumper referring to [1][2]Diagrams Front Bumper and Rear Bumper Components.
3) Disconnect washer pump lead wire couplers and hoses.
4) Remove washer tank attaching bolts (4).
5) Remove washer tank (1).
6) Remove windshield washer pump (2) and rear washer pump (3) from washer tank (1).











Installation

Washer Pump Inspection

Install washer tank and washer pump by reversing removal procedure, noting the following instructions.

- Connect washer pump connector(s) and hose securely.
