Symptom Related Diagnostic Procedures
Rear End Door Window / Back Window Defogger Symptom Diagnosis
NOTE:
- Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or output side of BCM. For checking procedure, refer to "Diagnosis Using Output Test Function of SUZUKI Scan Tool" under Scan Tool Testing and Procedures Scan Tool Data.

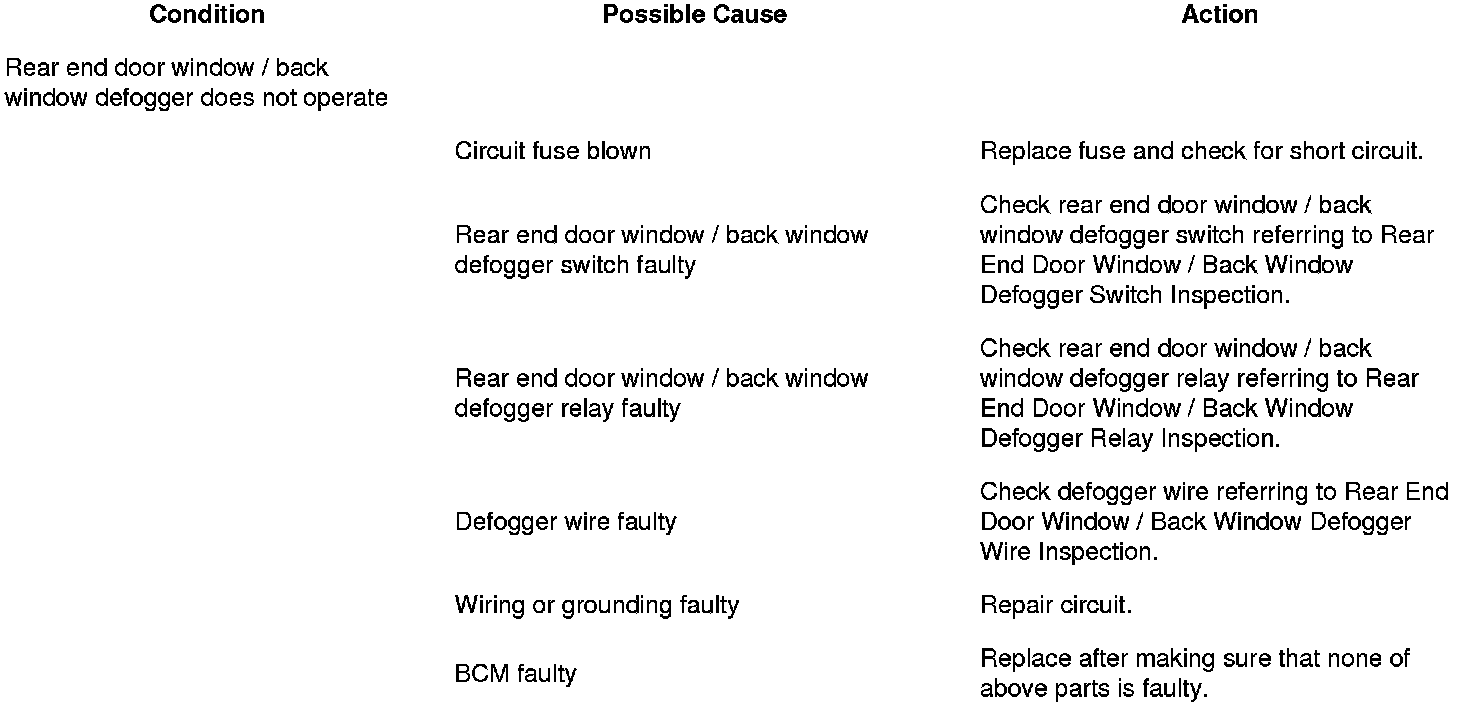

- Check each part in the order from the top of the following list.
