Gear Shift Control Lever and Cable Removal and Installation

Gear Shift Control Lever and Cable Removal and Installation

Gear Shift Control Lever and Cable Components

Removal

1) Remove console box. Diagrams
2) Disconnect cable ends (5) from pivot (6) of gear shift control lever assembly by removing clip.

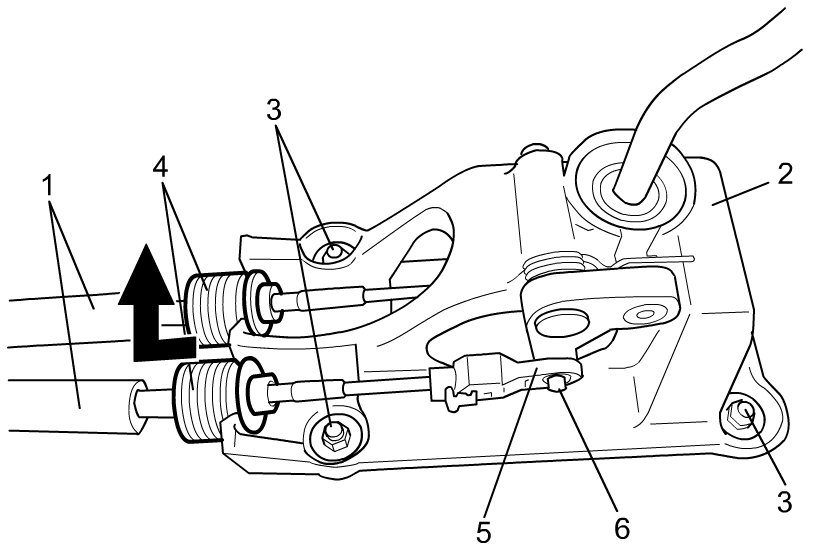

3) Disconnect gear shift and select control cables (1) from gear shift control lever assembly (2) while pulling quick joint (4) as shown in figure.
4) Remove gear shift control lever assembly mounting nuts (3) and gear shift lever assembly from floor panel.
5) Disconnect gear shift and select control cables from transaxle.
6) Remove cable grommet bolt, and then remove gear shift and select control cables from floor panel.






Installation

Reverse removal procedure for installation nothing the following.

- Tighten each bolts and nuts to specified torque. Gear Shift Control Lever and Cable Components
- Adjust gear select control cable. Adjustments
