Constant Velocity Joint Boot: Testing and Inspection




Drive Shaft (Axle) Boot Inspection

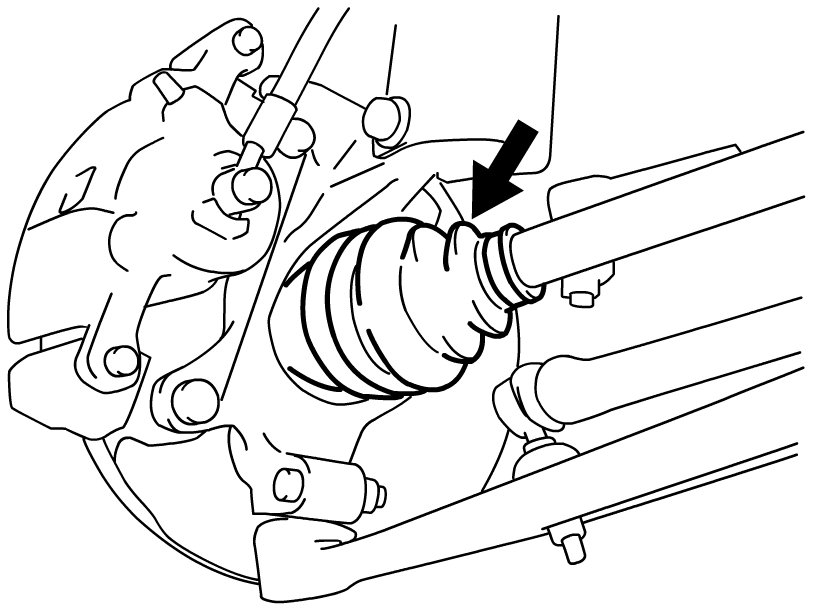

Check drive shaft boots (wheel side and differential side) for leaks, detachment, tear or other damage.

Replace defective parts as necessary.
