Secondary Pulley Speed Sensor Removal and Installation

Secondary Pulley Speed Sensor Removal and Installation

Removal

1) Disconnect negative cable from battery.
2) Remove air cleaner assembly. Air Cleaner Assembly Removal and Installation

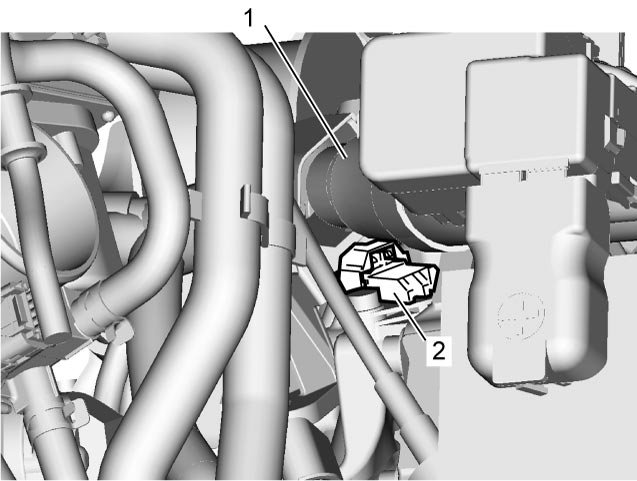

3) Detach wire harness (1) from transaxle.
4) Remove secondary pulley speed sensor (2) from transaxle.
5) Disconnect connector from secondary pulley speed sensor.






Installation

Primary Pulley Speed Sensor and Secondary Pulley Speed Sensor Inspection

Reverse removal procedure noting the following.

- Apply CVT fluid to new O-ring of sensor.
- Tighten secondary pulley speed sensor bolt to specified torque.

Tightening torque
Secondary pulley speed sensor bolt 5.9 Nm (0.60 kgf-m, 4.5 lbf-ft)

- Connect connector and fix wire harness with clamp securely.
