Fail-Safe Table




Fail-Safe Table

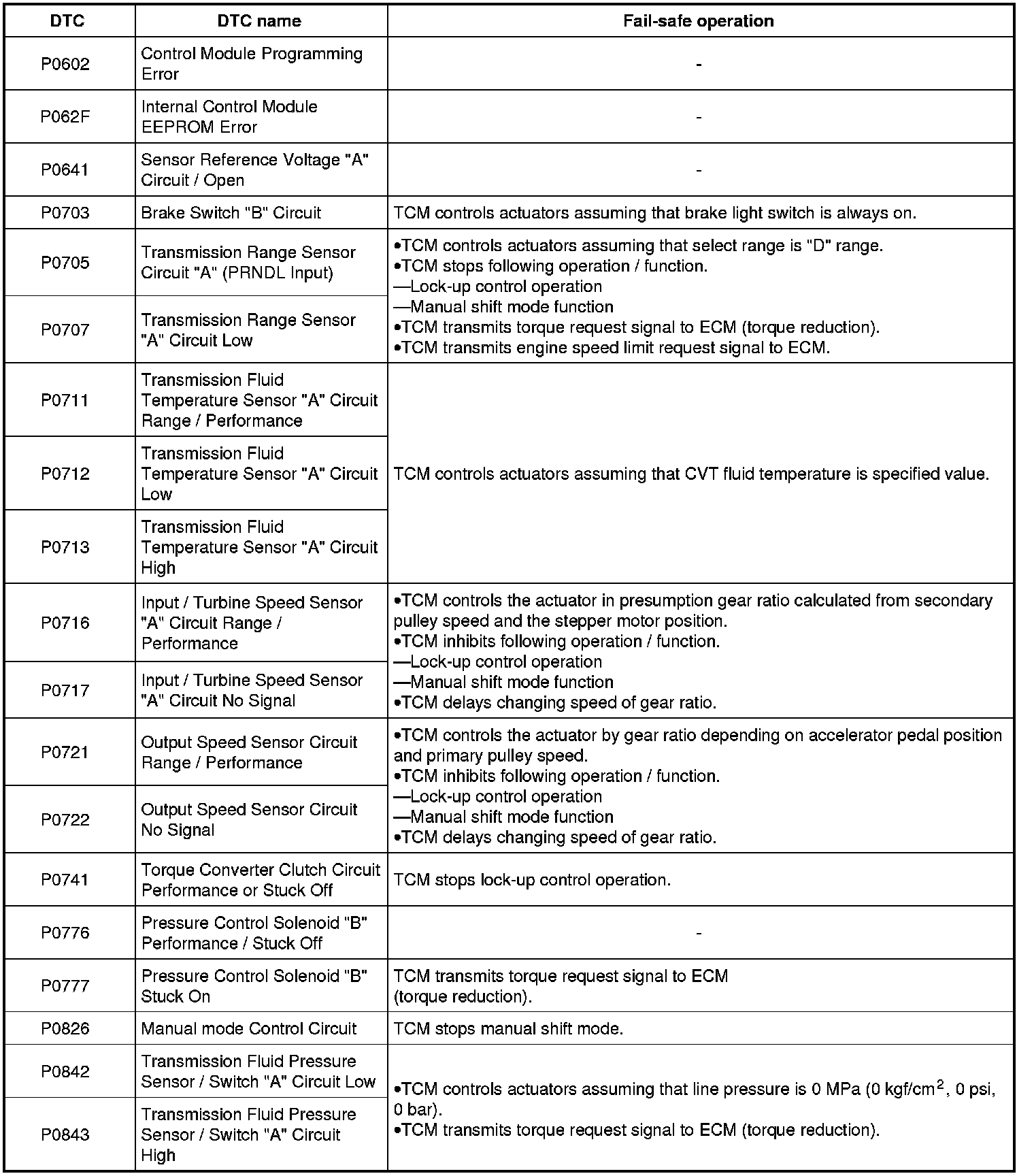

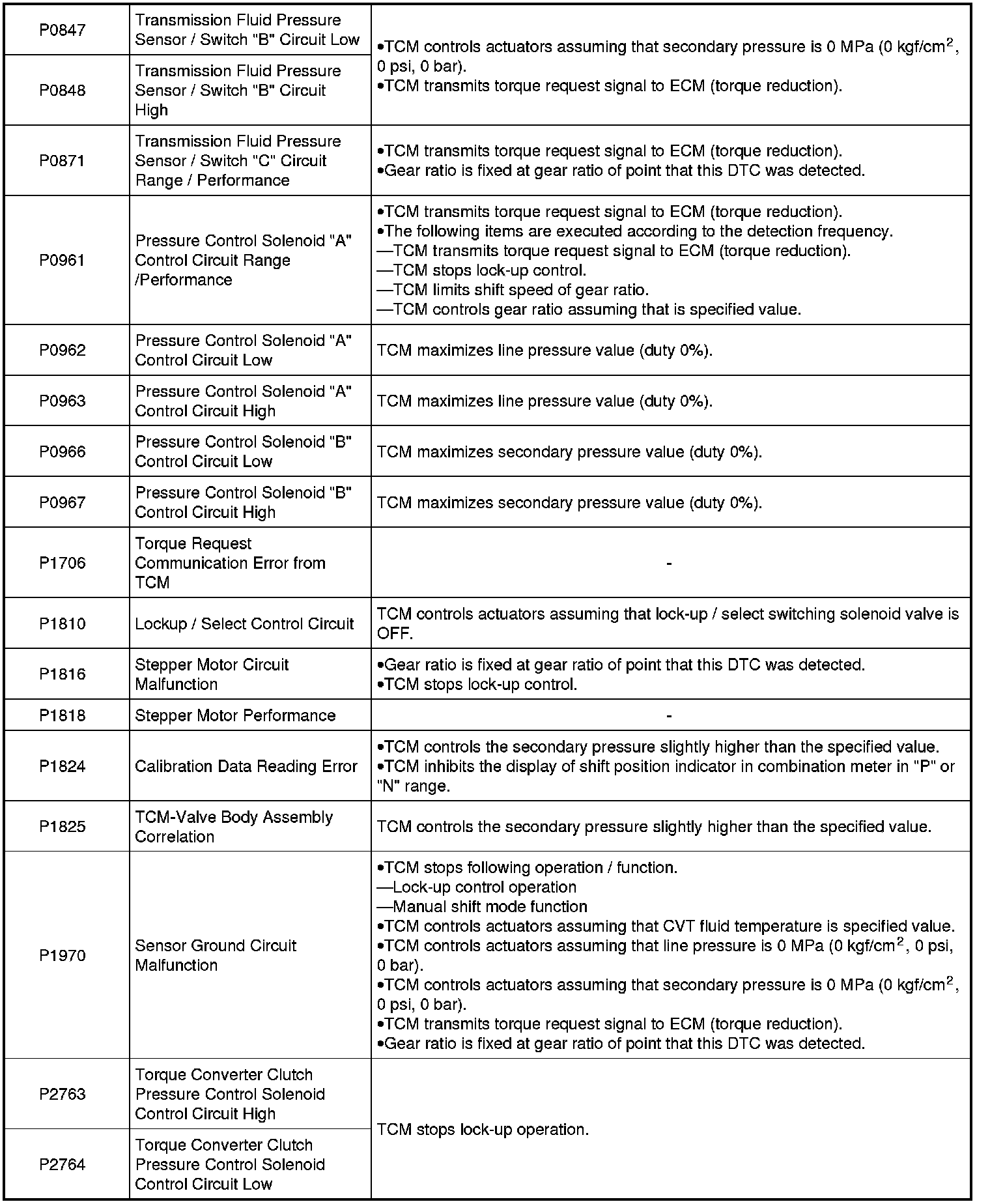

This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail-safe function for each fail condition of sensor, solenoid valve or its circuit.
