Shift Lock Solenoid Removal and Installation




Shift Lock Solenoid Removal and Installation

Removal

1) Remove console box. Diagrams
2) Disconnect connector from select lever.

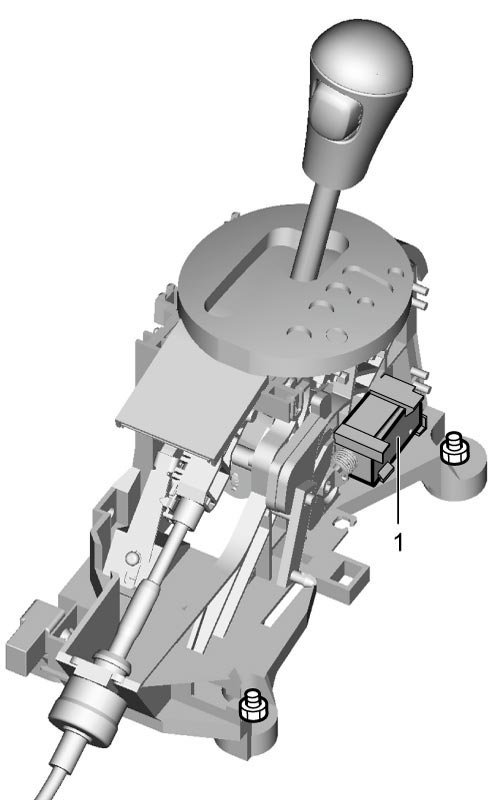

3) Remove shift lock solenoid (1) using flat-head screwdriver or the like.






Installation

Shift Lock Solenoid Inspection

Reverse removal procedure for installation.
