Control Arm: Testing and Inspection

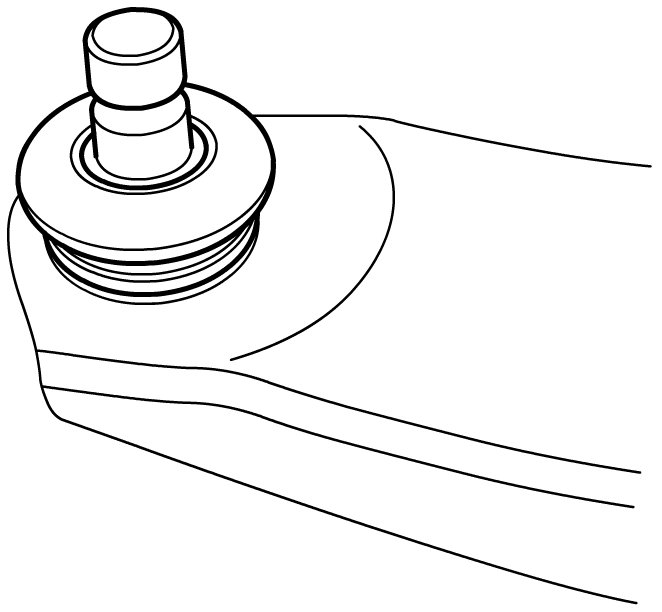

Suspension Arm Joint Check

Suspension Arm Removal and Installation

- Check smooth rotation of ball stud.
- Check ball stud for damages.
- Check dust cover for damages.

NOTE:

Suspension arm and arm joint cannot be separated.

If there is any damage to either part, suspension arm must be replaced as a complete unit.
