Ball Joint: Service and Repair




Tie-Rod End Ball Joint Inspection

Tie-Rod End Removal and Installation:Hydraulic Type

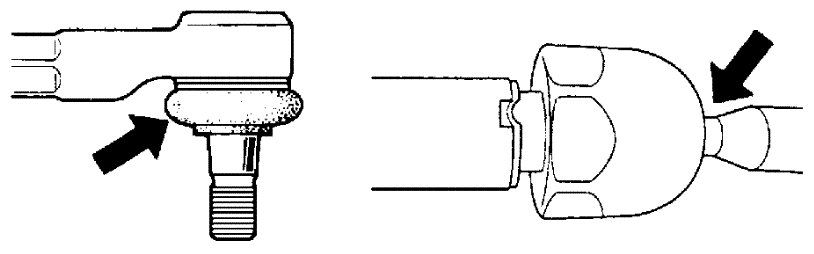

- Inspect for play in ball joint.
- inspect for play in rack end ball joint.
In either case, if found defective, replace.
