EPS Warning Light Check

"EPS" Warning Light Check

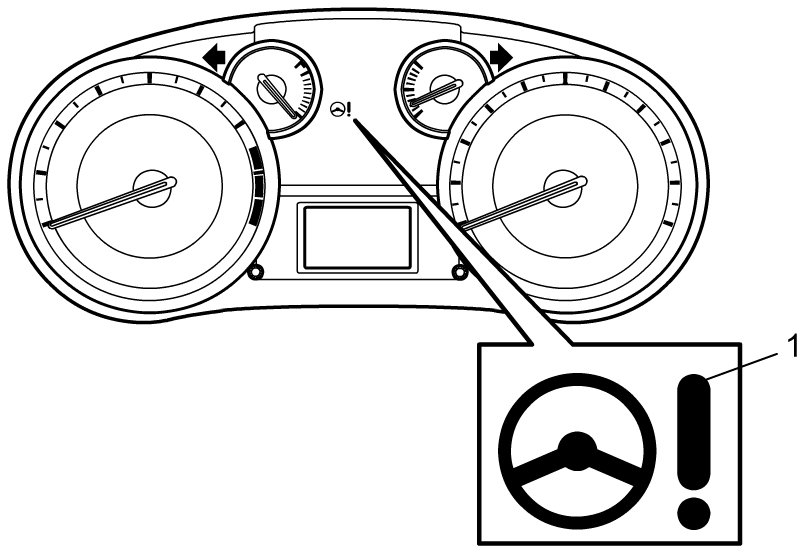

1) Turn ignition switch to ON position (but without running engine) and check if the "EPS" warning light (1) lights up. If the light dose not light up, go to EPS Warning Light Does Not Come ON with Ignition Switch Turned ON before Engine Starts "EPS" Warning Light Does Not Come ON with Ignition Switch Turned ON before Engine Starts:Electric Type
of the diagnostic flows.
2) Start engine and check that "EPS" warning light turns OFF. If light remains ON and no DTC is stored in P/S control module, go to EPS Warning Light Remains ON Steady after Engine Starts "EPS" Warning Light Remains ON Steady after Engine Starts:Electric Type
for troubleshooting.
