Generator Removal and Installation

Generator Removal and Installation

Removal

1) Disconnect negative (-) cable from battery.
2) Remove intake manifold. Intake Manifold Removal and Installation
3) Remove accessory drive belt. Removal and Installation

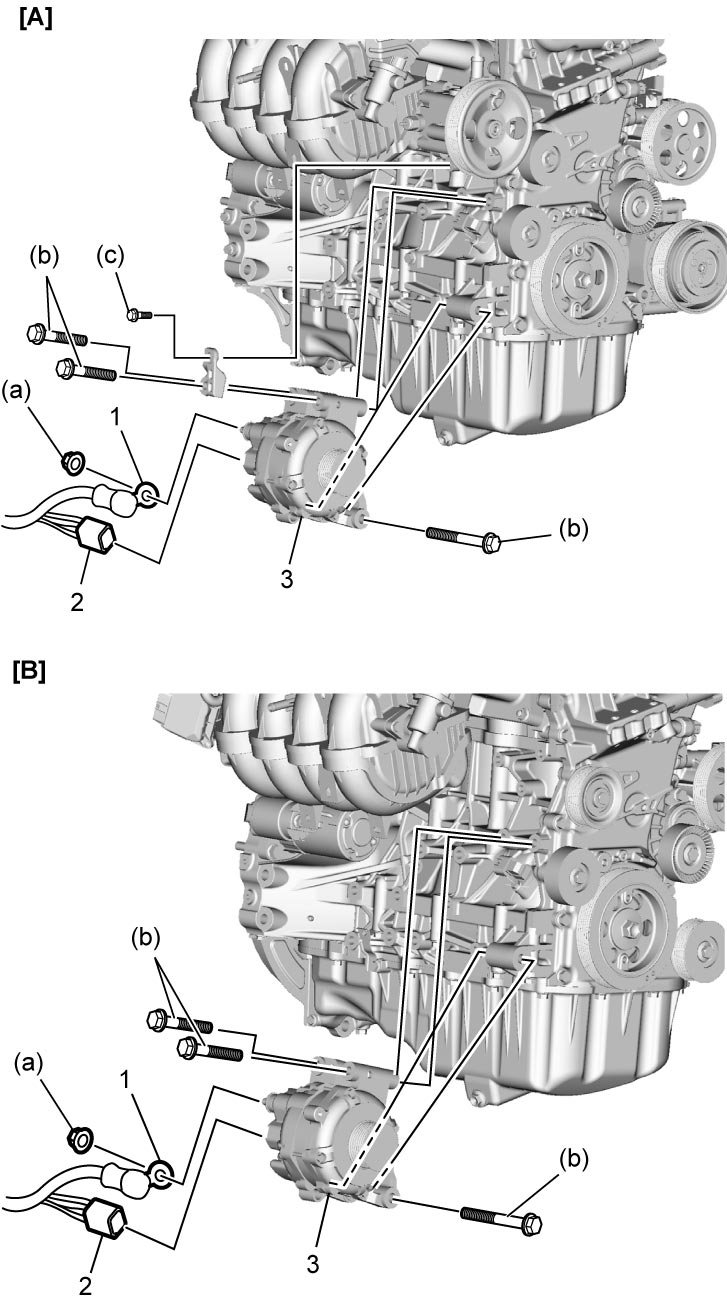

4) Disconnect "B" terminal wire (1) and connector (2) from generator (3).
5) Remove generator (3).

Installation

Generator Components

Generator Inspection

Reverse removal procedure noting the following.

Tighten generator bolts, "B" terminal wire nut and power steering pump stay bolt to specified torques.

Tightening torque
"B" terminal wire nut (a): 11 Nm (1.1 kgf-m, 8.5 lbf-ft)
Generator bolt (b): 45 Nm (4.6 kgf-m, 33.5 lbf-ft)
Power steering pump stay bolt (c): 25 Nm (2.5 kgf-m, 18.5 lbf-ft)
