Exhaust Manifold

Exhaust Manifold

Tightening torque
Exhaust manifold bolt* (a): 55 Nm (5.6 kgf-m, 40.5 lbf-ft)
Exhaust manifold nut* (b): 55 Nm (5.6 kgf-m, 40.5 lbf-ft)

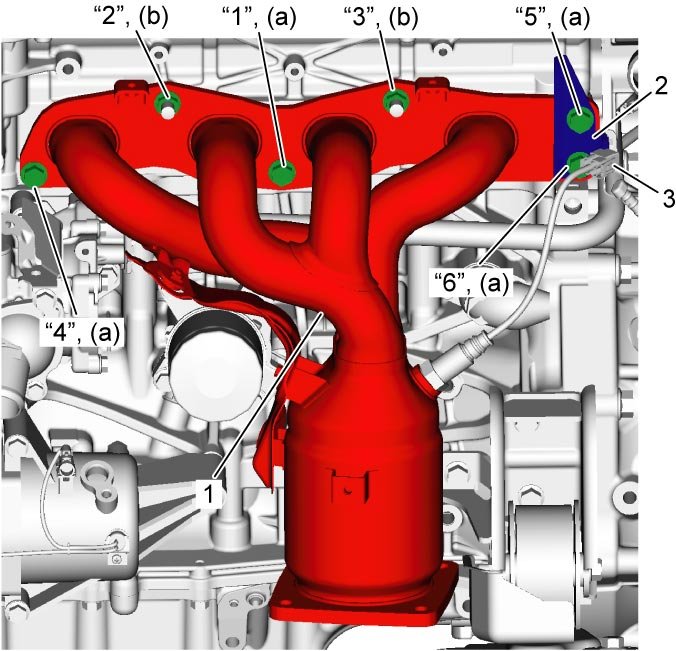

Tightening Sequence
Tighten exhaust manifold bolts and nuts to specified torque according to numerical order ("1" through "6") as shown as in figure.
