Fuel Pump: Description and Operation

Fuel Pump Description

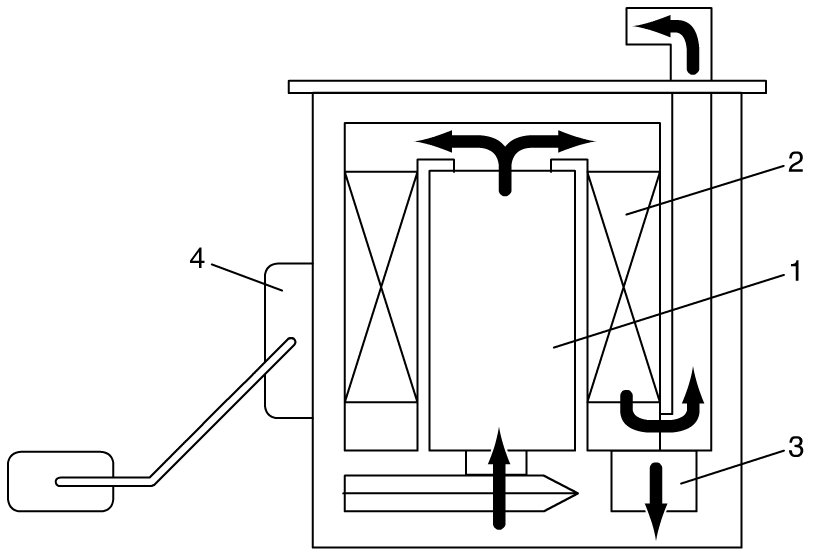

The fuel pump (1) is an in-tank type electric pump. Incorporated in the pump assembly are;

a fuel filter (2), a fuel pressure regulator (3) and a fuel level sensor (4).
