Fuel Filler Cap: Testing and Inspection

Fuel Filler Cap Inspection

NOTE:

Failure to use correct cap can result in critical malfunction of system.

If cap requires replacement, only a cap with genuine SUZUKI parts should be used.

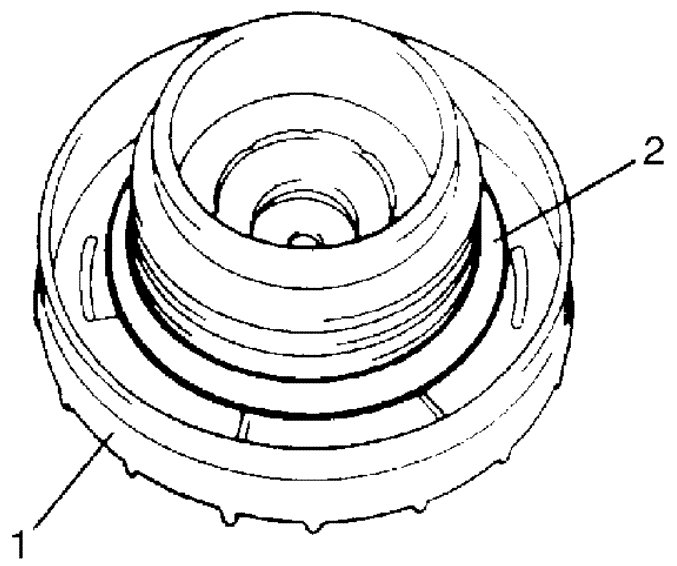

Remove cap (1), and check gasket (2) for even filler neck imprint, and deterioration or any damage. If gasket is defective, replace cap.
