Low Tire Pressure Warning Light Check




Low Tire Pressure Warning Light Check

1) Turn ignition switch ON.

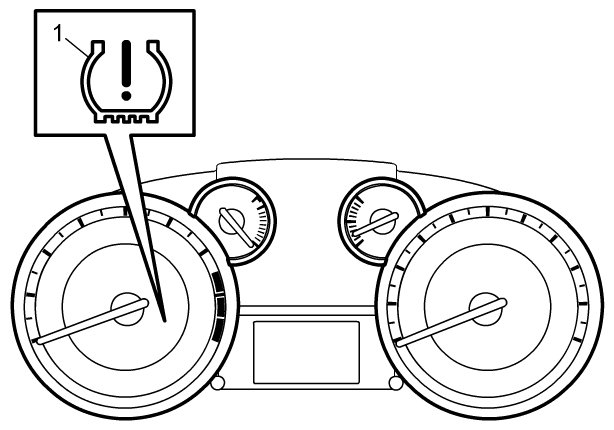

2) Check that low tire pressure warning light (1) comes ON for about 2 seconds and then goes OFF.

If any faulty condition is found, advance to Low Tire Pressure Warning Light Does Not Come ON at Ignition Switch ON Low Tire Pressure Warning Light Does Not Come ON at Ignition Switch ON or Low Tire Pressure Warning Light Comes ON Steady Low Tire Pressure Warning Light Comes ON Steady.
