Hazard Warning Switch Inspection

Hazard Warning Switch Inspection

Hazard Warning Switch Removal and Installation

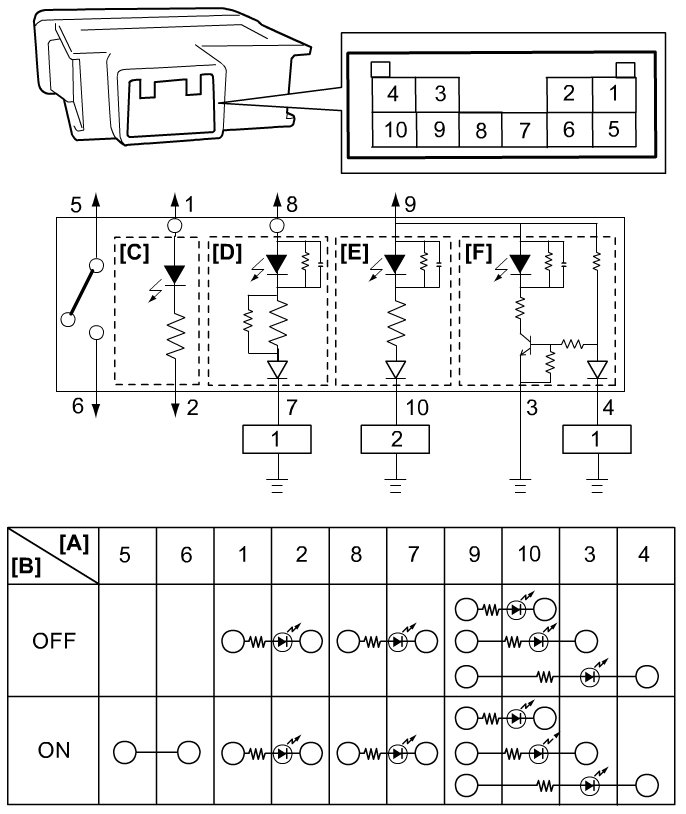

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

NOTE:

Use diode range of circuit tester when checking between terminals "1" and "2", "7" and "8", "9" and "10", "9" and "3" and "9" and "4".
