Door Switch: Testing and Inspection

Door Switch (Front / Rear Door) Inspection

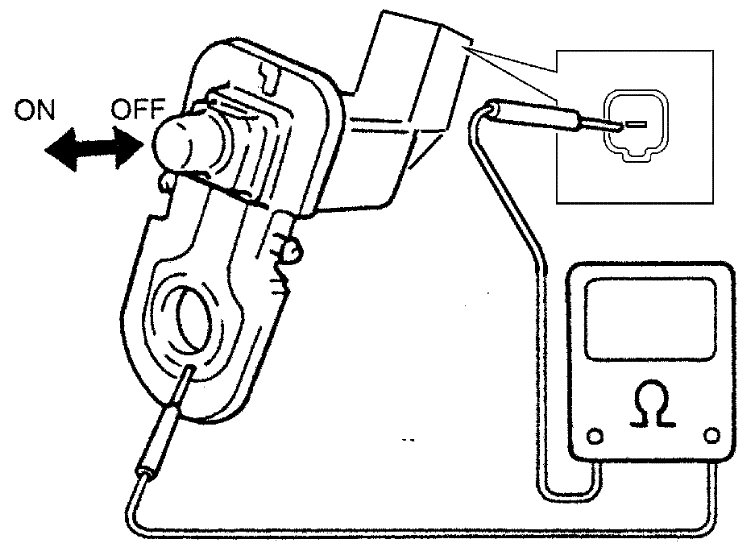

Remove door switch from body and check switch for continuity. If found defective, replace switch.

Door switch (front / rear door) specification
OFF position (Door closed): No continuity
ON position (Door open): Continuity
