Brake Light Switch: Adjustments

Brake Light Switch Adjustment

Adjustment should be made as follows. Pull up brake pedal toward you and while holding it there, adjust switch position so that clearance between end of thread and brake pedal is as specified. Then lock it by turning clockwise.

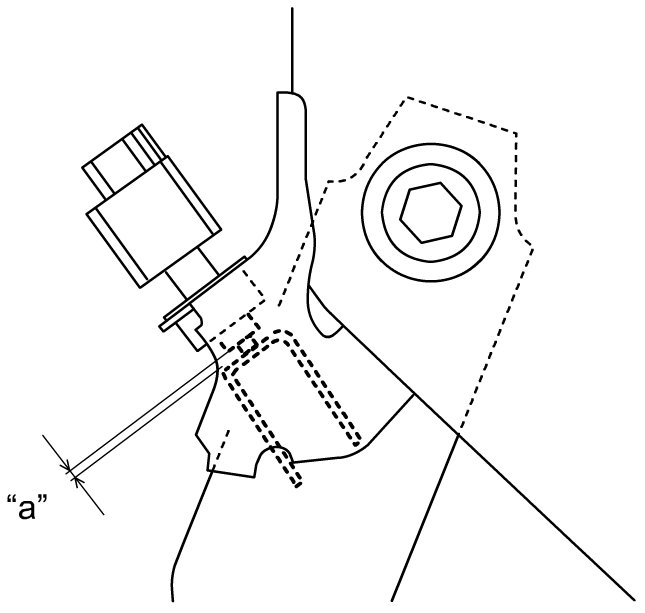

Clearance between thread end of brake light switch and brake pedal
"a": 1.0 - 2.0 mm (0.04 - 0.08 in.)
