Removal and Installation

Relief Valve Removal and Installation

Removal

1) Remove compressor assembly. Removal and Installation
2) Remove relief valve (1) from compressor (2).






Installation

Reverse removal procedure noting the following instructions.

- Use new O-ring
- Apply compressor oil to O-ring.
- Tighten relive valve to the specified torque.

Tightening torque

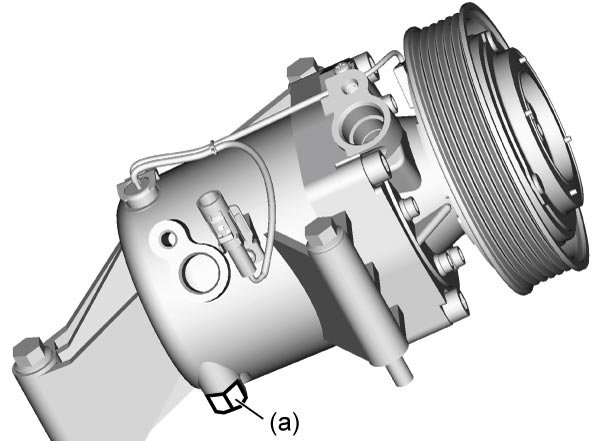

Relief valve (a): 8 Nm (0.8 kgf-m, 6.0 lbf-ft)





- Install compressor assembly. Removal and Installation
