Inspection

Evaporator Temperature Sensor Inspection

Evaporator Temperature Sensor Removal and Installation:Manual A/C

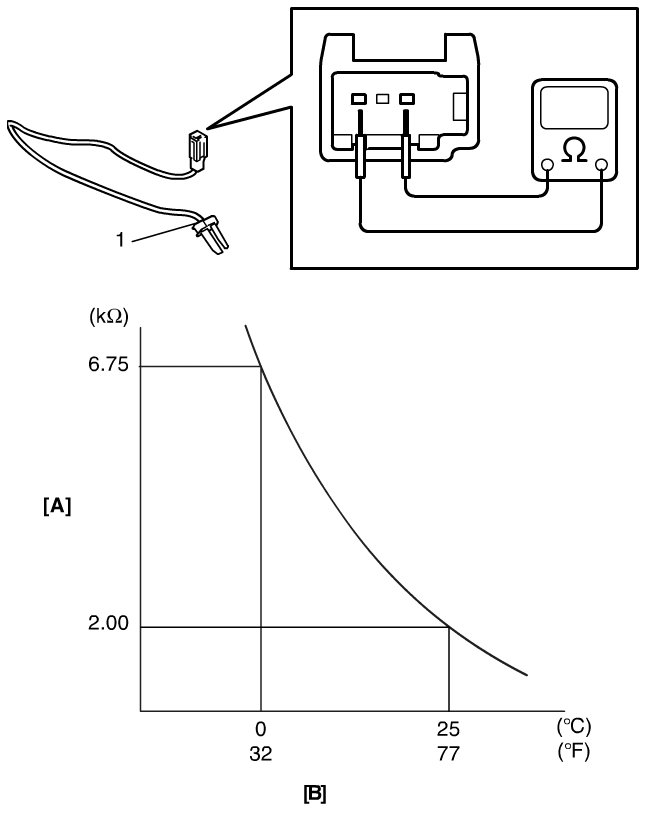

Check resistance between terminals of evaporator temperature sensor (1).

If check results are as not specified, replace evaporator temperature sensor.

Evaporator temperature sensor resistance
0 °C (32 °F): 6.6 - 6.8 kohms
25 °C (77 °F): 2.0 - 2.1 kohms
