Blower Motor Switch: Testing and Inspection

Blower Speed Selector Inspection

HVAC Control Unit Removal and Installation

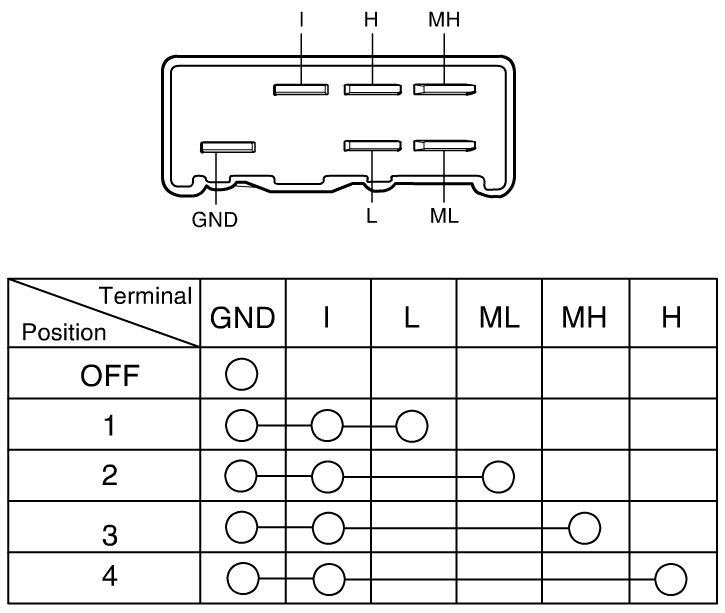

Check blower speed selector for each terminal to terminal continuity. If check result does not meet the following conditions, replace HVAC control unit.
