Removal and Installation

Outside Air Temperature Sensor Removal and Installation (If Equipped)

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front bumper referring to [1][2]Diagrams Front Bumper and Rear Bumper Components.
3) Disconnect connector from outside air temperature sensor.

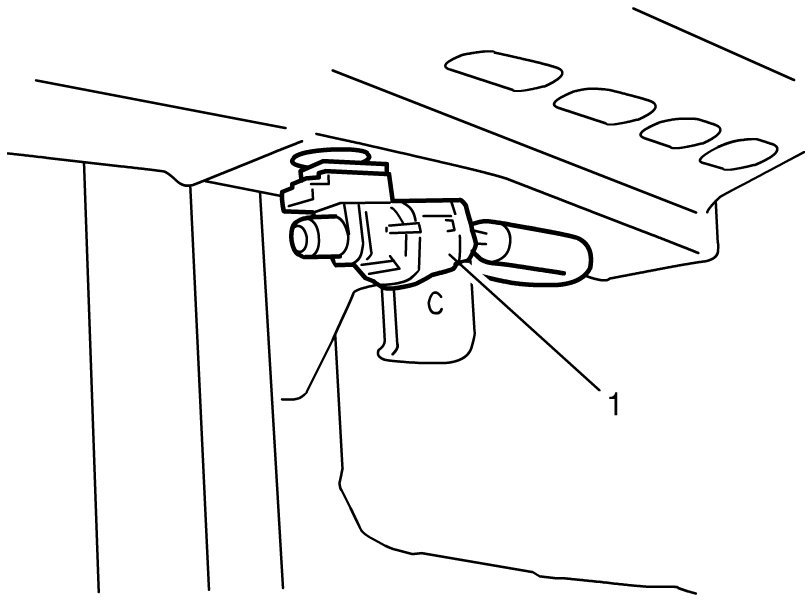

4) Remove outside air temperature sensor (1) from front bumper member.






Installation

Outside Air Temperature Sensor Inspection (If Equipped)

Reverse removal procedure for installation.
