Side Ventilation Louver Removal and Installation

Side Ventilation Louver Removal and Installation

Removal

1) Remove instrument panel from vehicle body referring to Service and Repair Instrument Panel Removal and Installation.

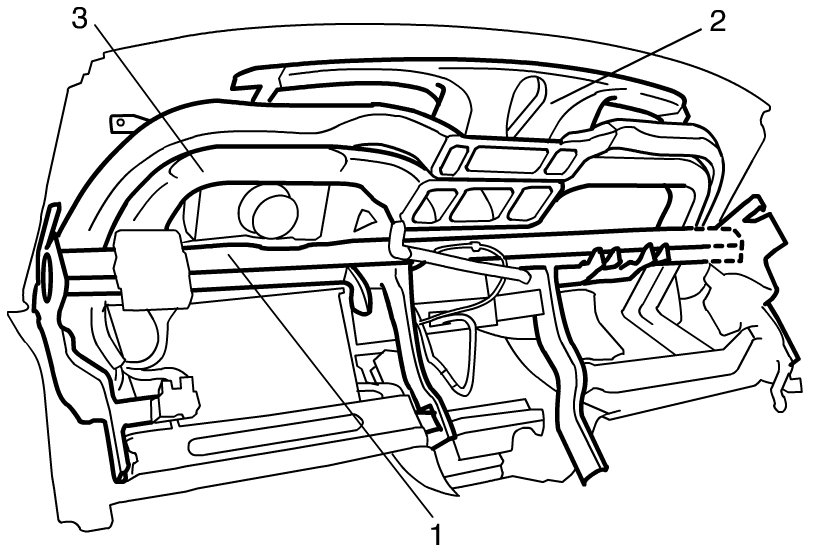

2) Remove steering support member (1), defroster nozzle (2) and ventilator duct (3) from instrument panel.

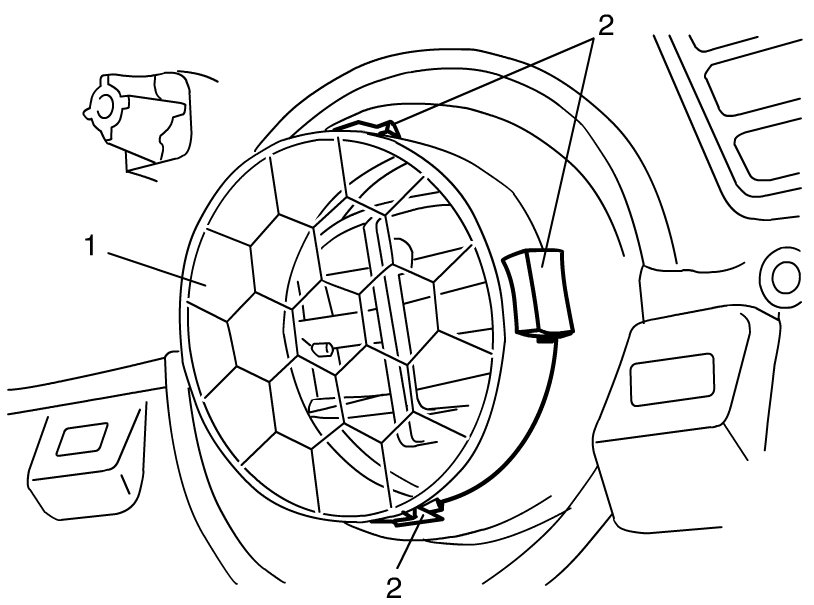

3) Remove side ventilation louver (1) from instrument panel while pressing clips (2).






Installation

Reverse removal procedure noting the following instruction.

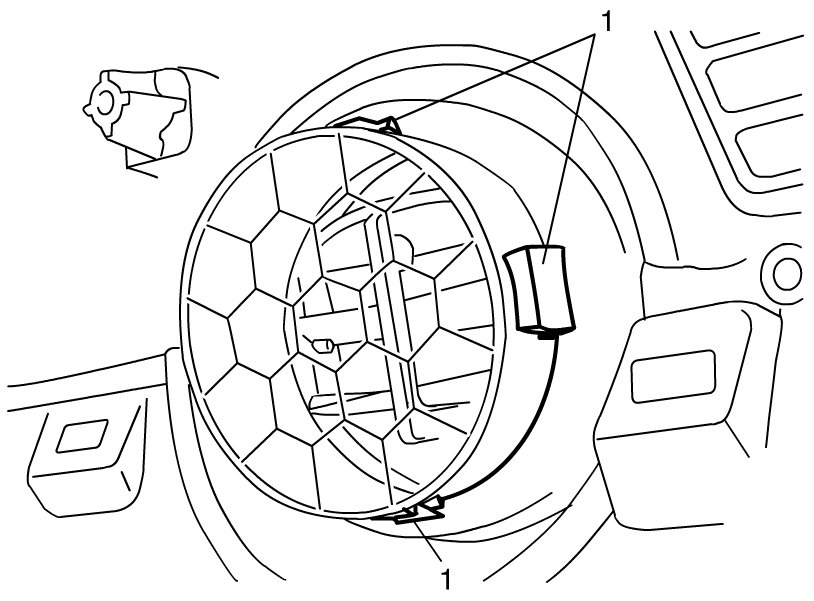

- Side ventilation louver is fitted to instrument panel with four clips (1). When installing side ventilation louver to instrument panel, position the smallest clip to the top.
