Overhaul

Radiator Cooling Fan Disassembly and Reassembly

Radiator Cooling Fan Assembly Removal and Installation

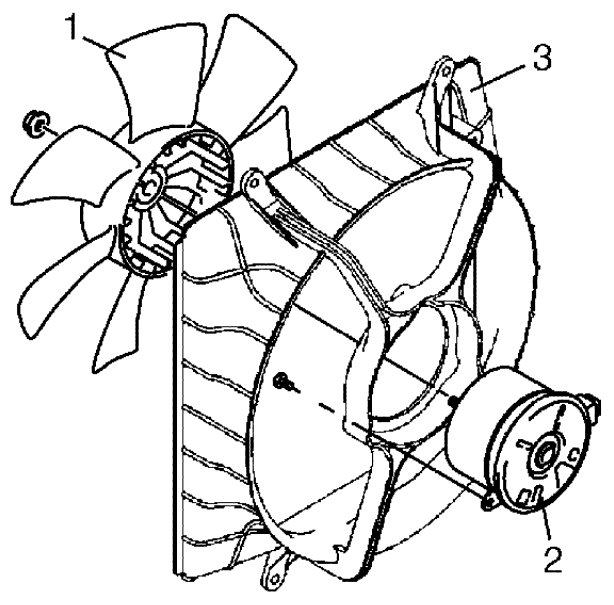

Disassembly

1) Remove fan (1) from cooling fan motor (2).
2) Remove fan motor (2) from cooling fan guide (3).






Reassembly

Reverse disassembly procedures for reassembly.

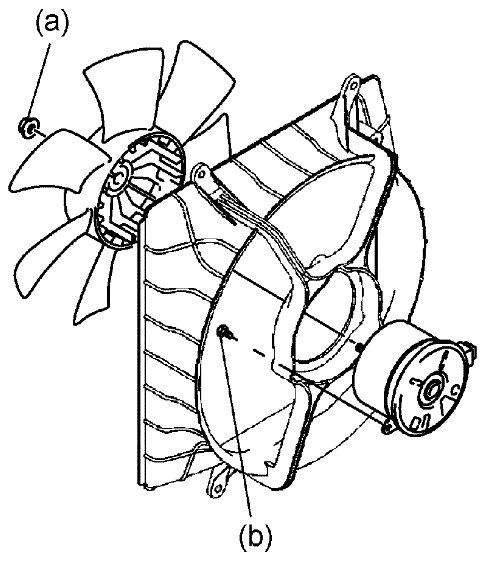

Tightening torque
Fan nut (a): 6 Nm (0.61 kgf-m, 4.5 lbf-ft)
Radiator cooling fan motor screw (b): 4 Nm (0.41 kgf-m, 3.0 lbf-ft)
