Cooling System

Coolant Circulation

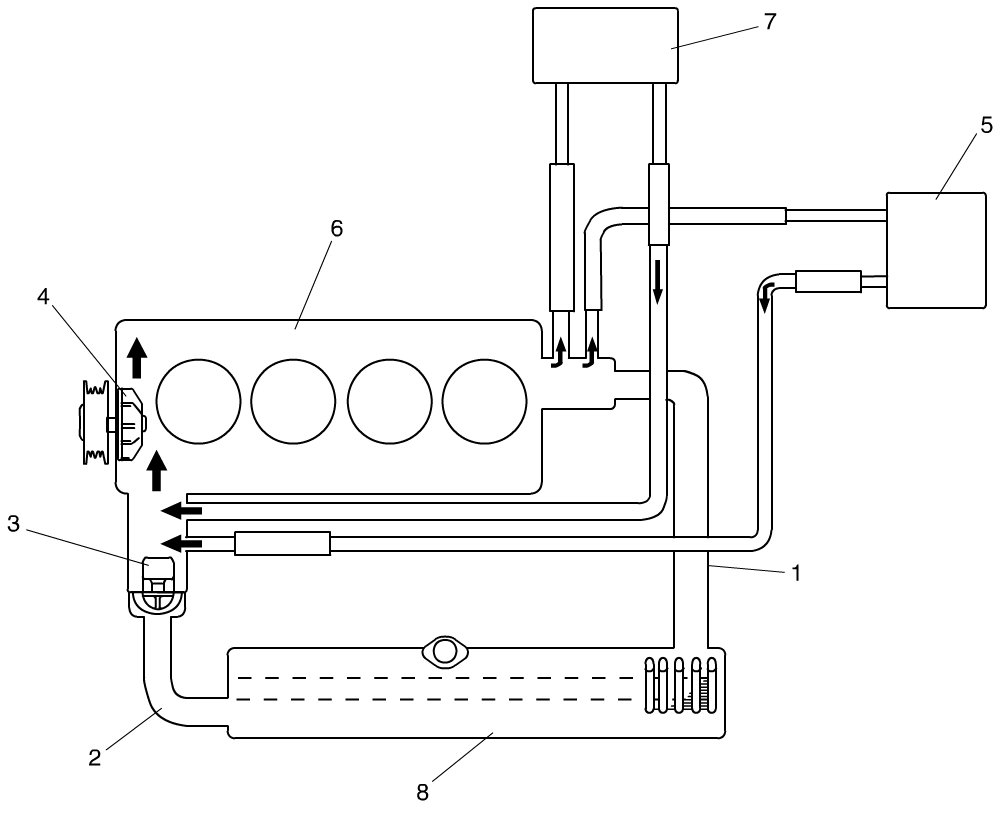

While the engine is warmed up (thermostat closed), coolant circulates as follows.

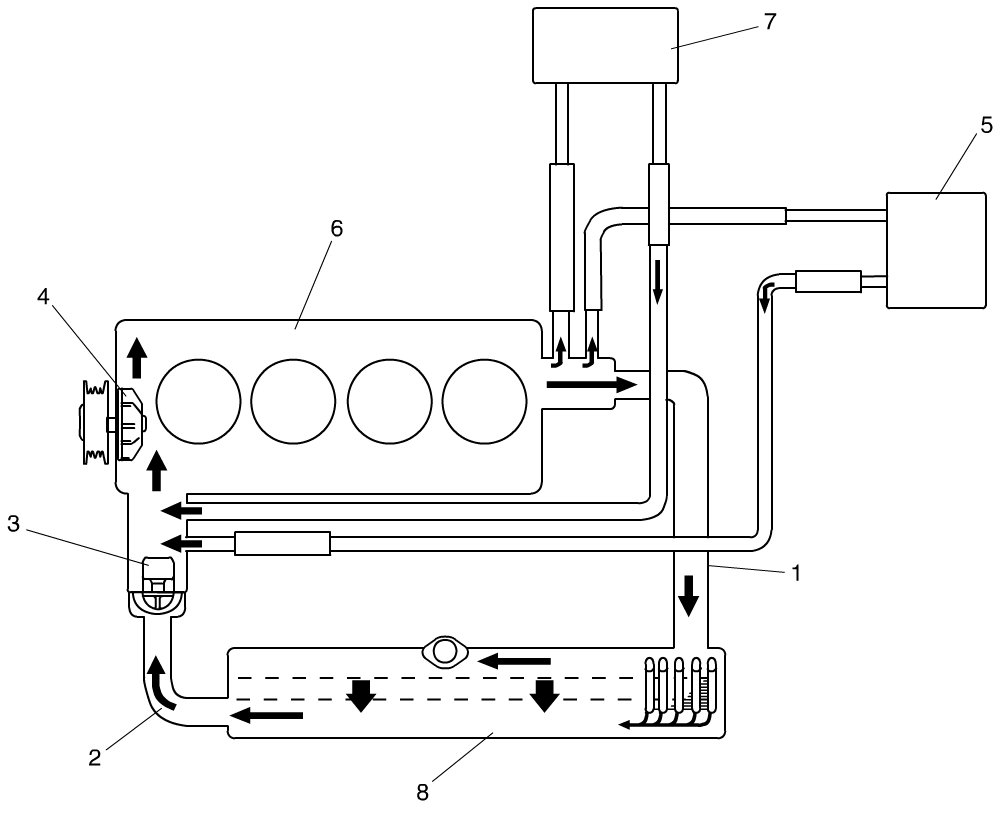

When coolant is warmed up to normal temperature and the thermostat opens, coolant passes through the radiator core to be cooled as follows.
