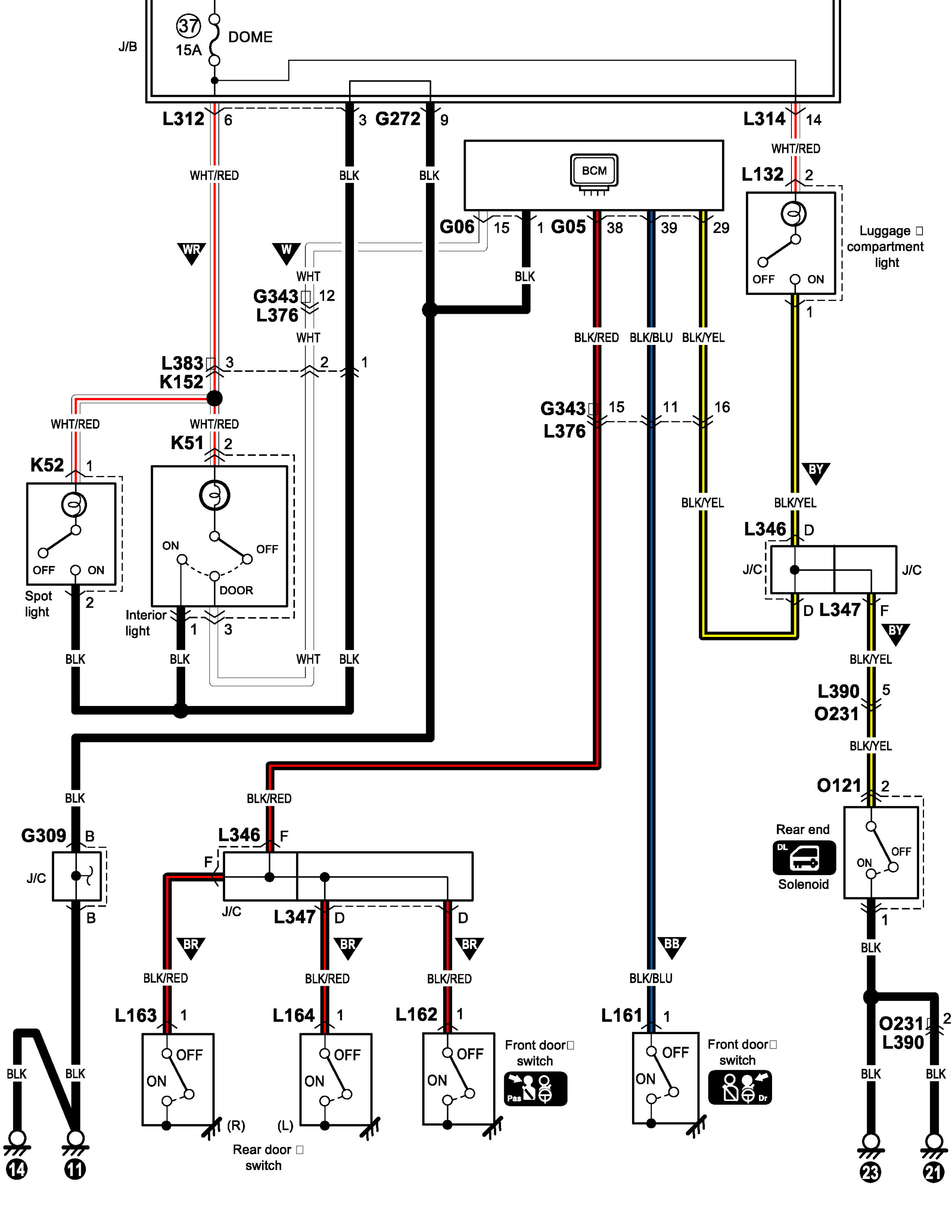

D-5 Interior Light System Circuit Diagram (Hatchback)
D-5 Interior Light System Circuit Diagram (Hatchback)
