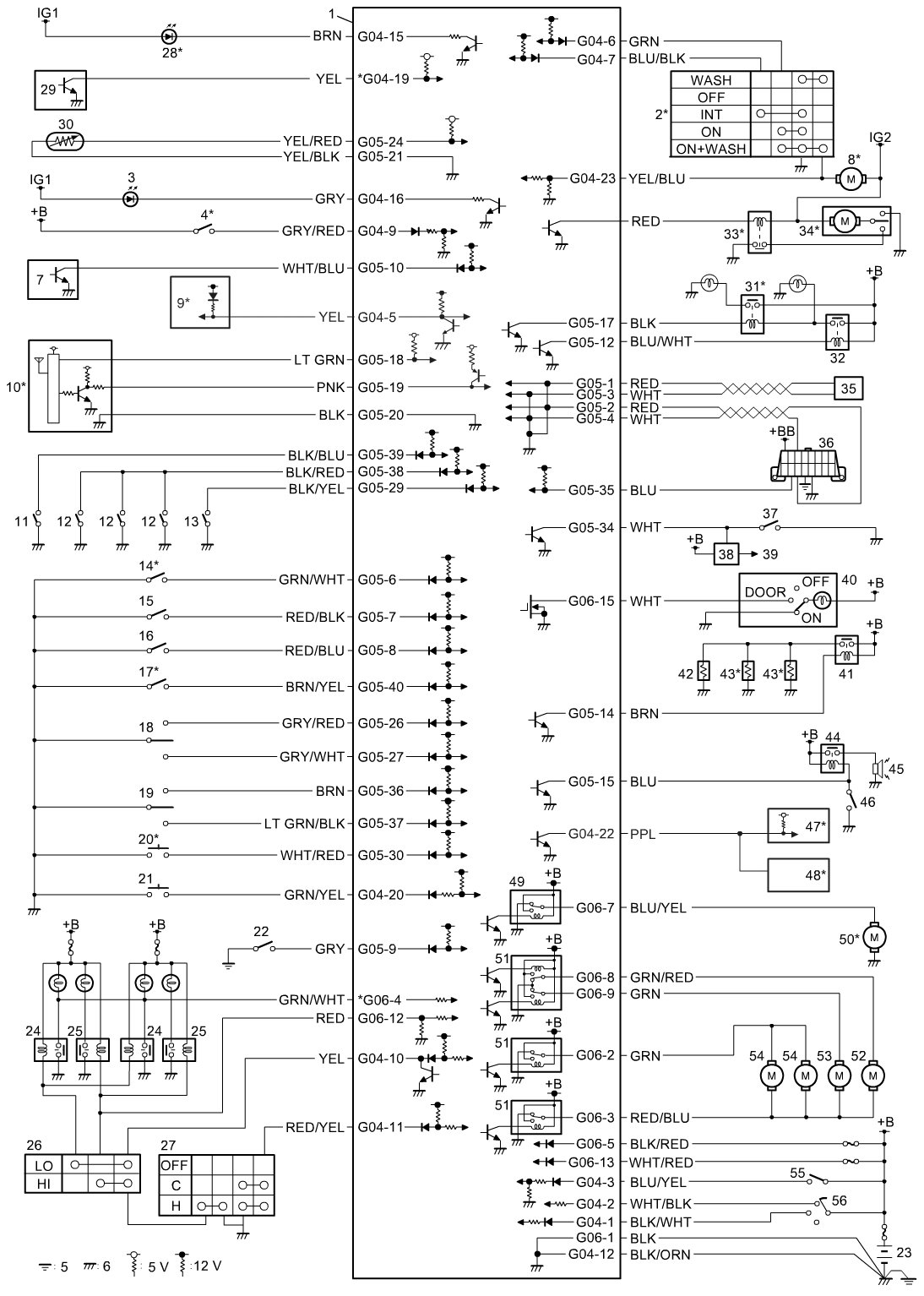

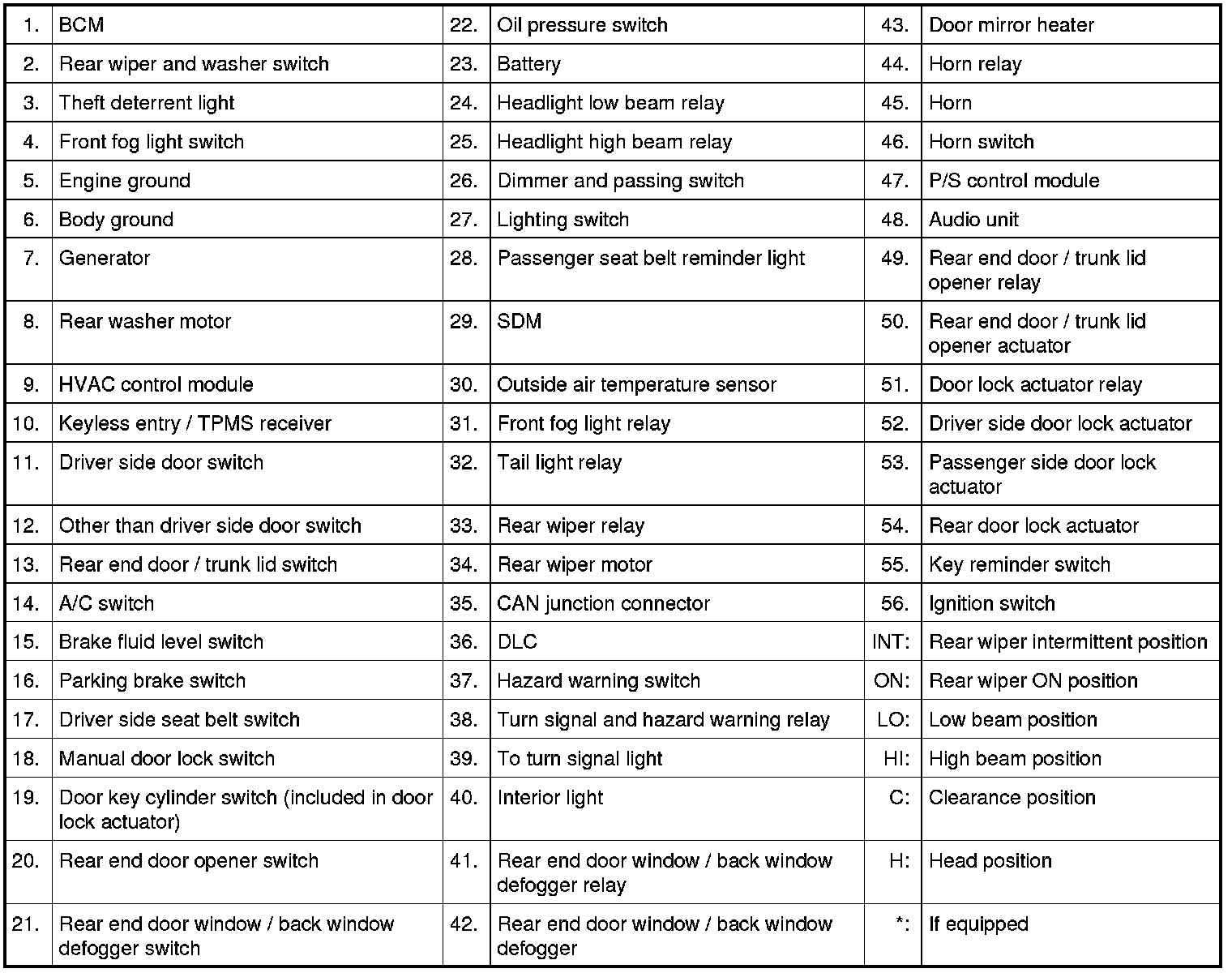

Body Electrical Control System Wiring Circuit Diagram
Body Electrical Control System Wiring Circuit Diagram
BCM
General Description
