Brake Adjuster: Testing and Inspection

Rear Brake Adjuster and Shoe Lever Check

Rear Brake Shoe Removal and Installation:Drum

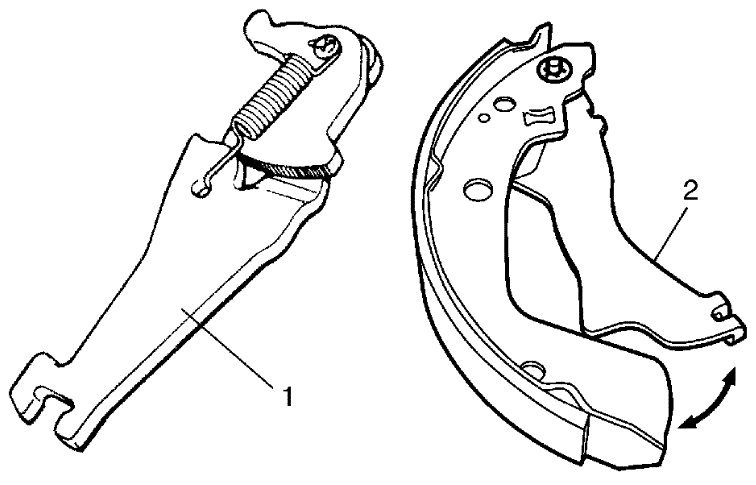

- Check ratchet of brake adjuster (1) assembly for wear or damage.
- Check shoe return spring, anti-rattle spring, quadrant spring and hold down spring for damage, corrosion and weakening.
- Check for smooth movement of brake shoe lever (2) along shoe rim.

If any defective or malfunction is found, repair or replace.
