Front Wheel Speed Sensor Encoder On-Vehicle Inspection

Front Wheel Speed Sensor Encoder On-Vehicle Inspection

Before inspecting front wheel speed sensor encoder, remove front drive shaft referring to Removal and Replacement Front Drive Shaft Assembly Removal and Installation:Front.

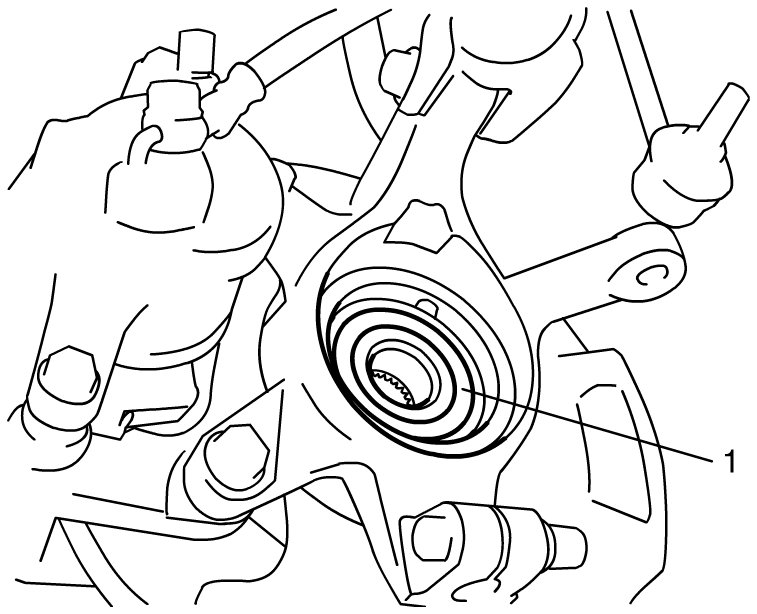

- Check sensor encoder (1) for crack, damage or deformation.
- Turn wheel and check if sensor encoder rotation is free from eccentricity and looseness.
- Check that no foreign material is attached.

If any faulty is found, clean or replace referring to Front Wheel Hub, Steering Knuckle and Wheel Bearing Removal and Installation Front Wheel Hub, Steering Knuckle and Wheel Bearing Removal and Installation.
