Removal and Installation (Hatchback)

Rear End Door Lock Assembly Removal and Installation (Hatchback)

Rear Door Lock Assembly Components

Removal

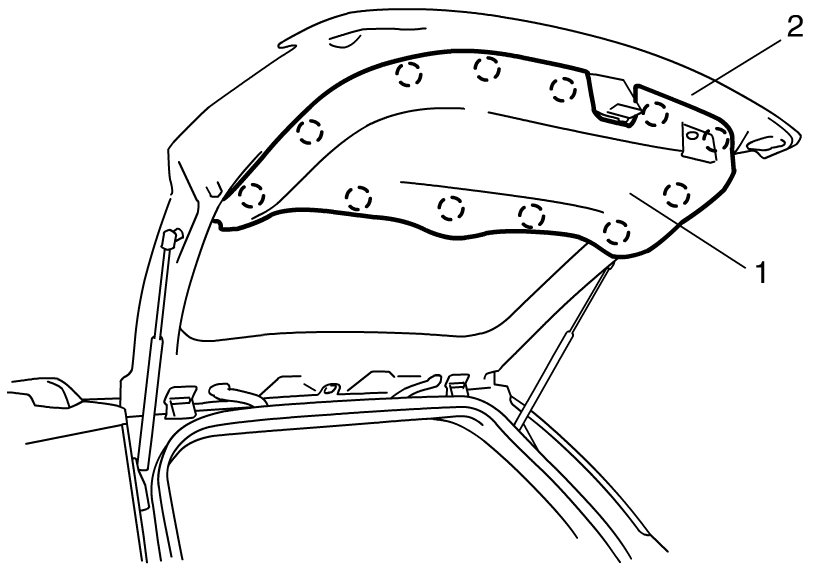

1) Remove door trim (1) from rear end door panel (2).





2) Disconnect door lock motor lead wire.
3) Loosen door latch bolts (1) and remove door latch assembly (2).






Installation

Rear End Door Lock Assembly Inspection (Hatchback)

Reverse removal procedure to install rear end door lock assembly noting the following instruction.

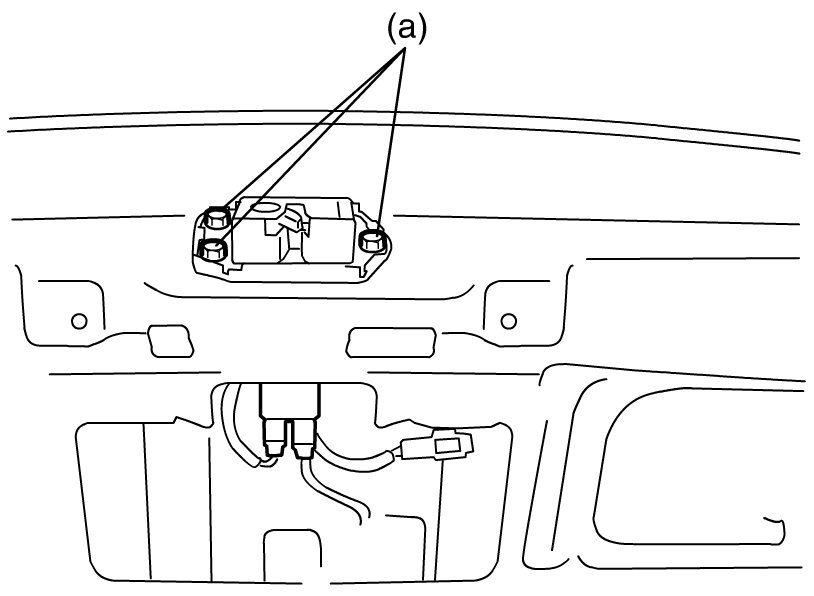

- Tighten rear end door latch bolt to specified torque.

Tightening torque
Rear end door latch bolt (a): 10 Nm (1.0 kgf-m, 7.5 lbf-ft)

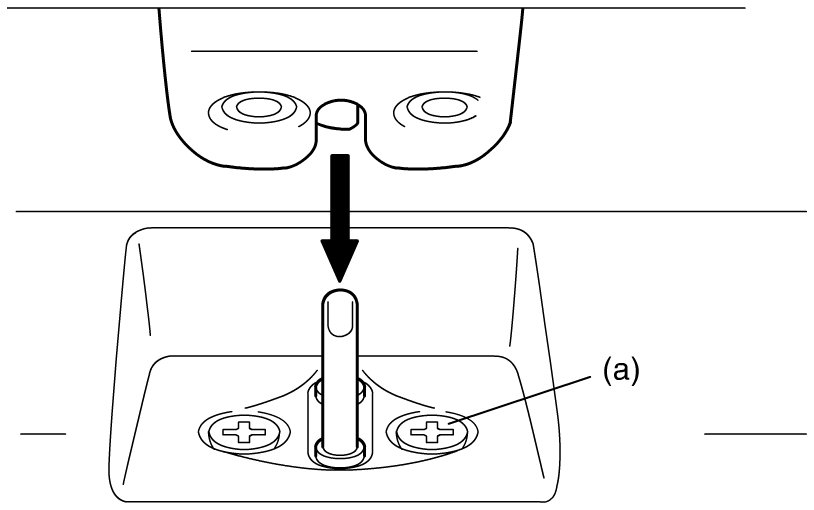

- Adjust door latch striker so that its center aligns with the center of groove in door latch base.

Tightening torque
Rear end door striker screw (a): 23 Nm (2.3 kgf-m, 17.0 lbf-ft)
