Removal and Installation

Rear Door Lock Assembly Removal and Installation

Rear Door Lock Assembly Components

Removal

1) Remove rear door glass referring to Rear Door Glass Removal and Installation Rear Door Glass Removal and Installation.
2) Disconnect door lock motor lead wire.

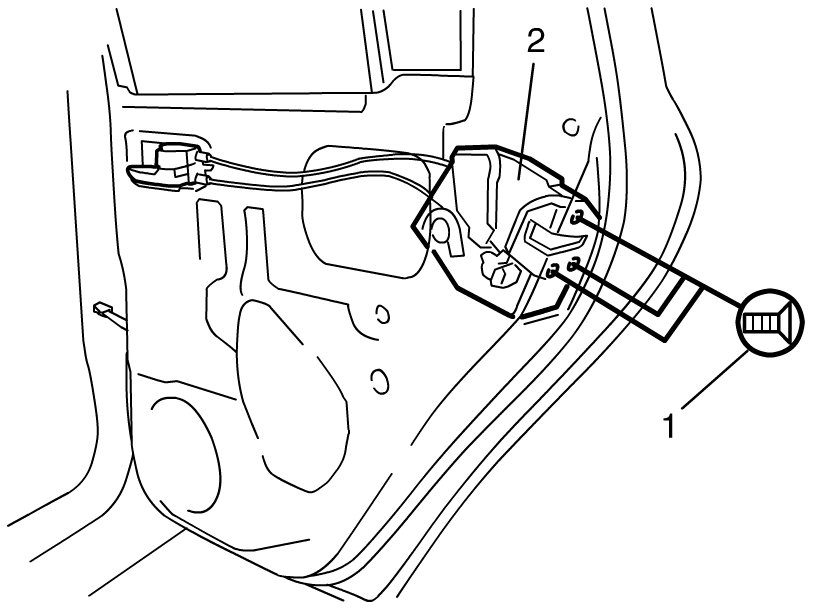

3) Remove door latch mounting screws (1) and remove door latch assembly (2).






Installation

Rear Door Lock Assembly Inspection

Reverse removal procedure to install rear door lock assembly referring to the following instruction and Removal and Installation Front Door Lock Assembly Removal and Installation.

- Tighten door latch screw to specified torque.

Tightening torque

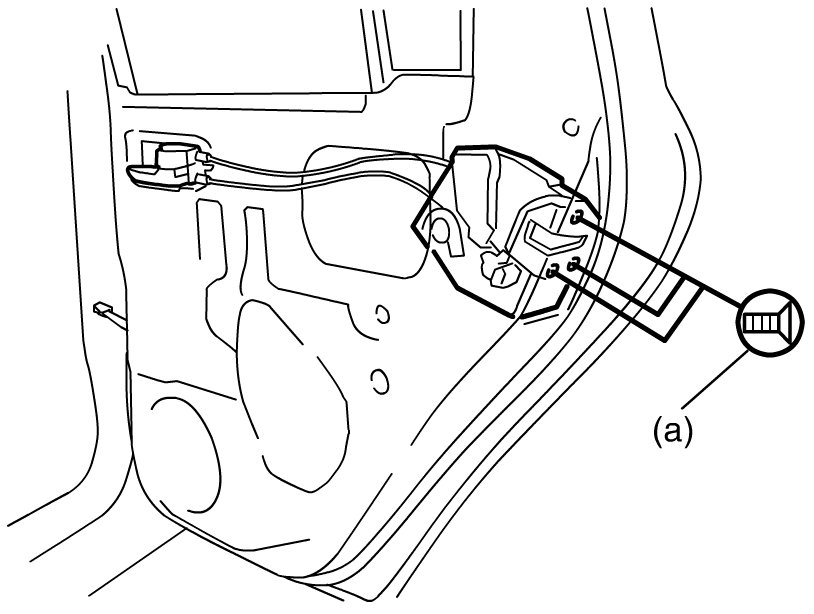

Door latch screw (a): 5.0 Nm (0.5 kgf-m, 4.0 lbf-ft)





- Install door trim referring to Rear Door Glass Removal and Installation Rear Door Glass Removal and Installation.
