Antenna: Service and Repair

Antenna Base Removal and Installation (Hatchback)

Removal

1) Remove head lining referring to Service and Repair Head Lining Removal and Installation.

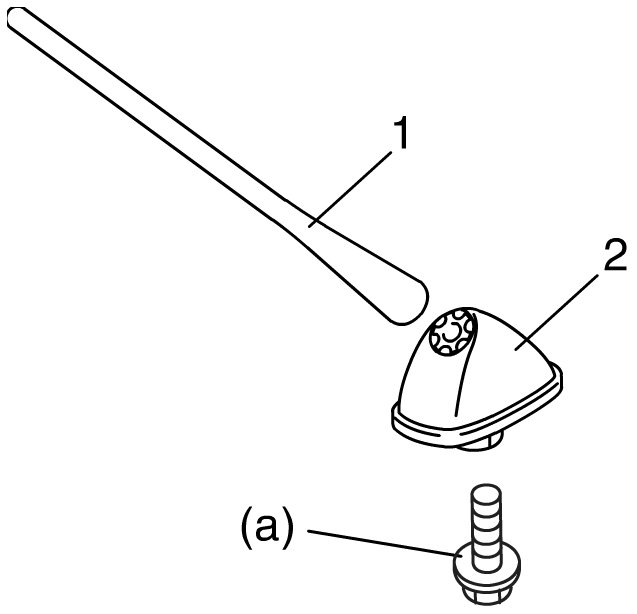

2) Remove antenna (1) from antenna base (2).
3) Disconnect antenna feeder from antenna base (2).
4) Remove antenna base (2) from vehicle.

Installation

Reverse removal procedure noting the following.

- Tighten antenna base mounting bolt to specified torque.

Tightening torque
Antenna base mounting bolt (a): 5.0 Nm (0.5 kgf-m, 4.0 lbf-ft)

- Install head lining referring to Service and Repair Head Lining Removal and Installation.
