Generator Removal and Installation: Installation
Reference: GENERATOR COMPONENTS
Reference: GENERATOR INSPECTION
Reverse removal procedure, noting the following points

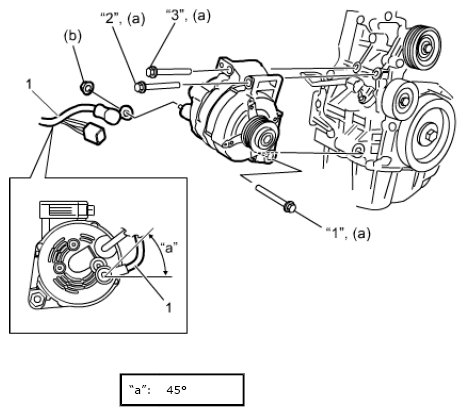

- Tighten generator bolts in numerical order ("1" → "2" → "3") evenly and gradually.
Tightening torque
Generator bolt* (a): 45 N.m (4.6 kg-m, 33.5 lbf-ft)
- Connect wire (1) to generator as shown in figure, and tighten "B" terminal nut to specified torque.
Tightening torque
"B" terminal nut (b): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
