Manual Transaxle Unit Components

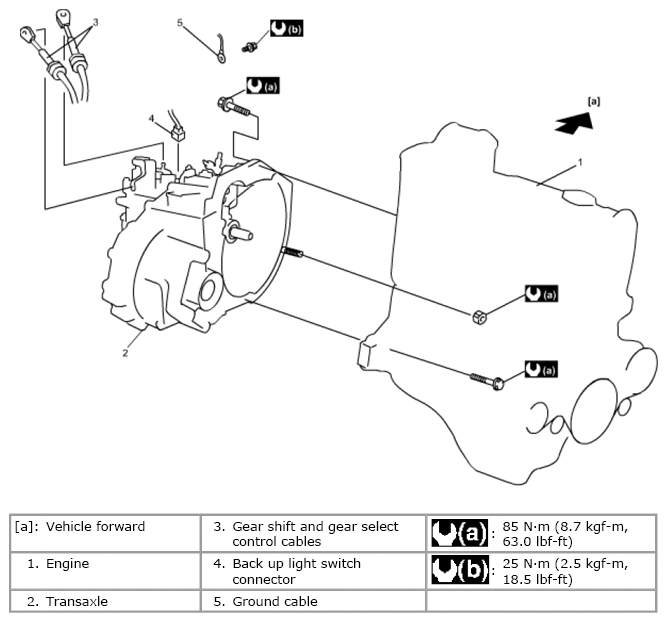

Fig 1: Manual Transaxle Unit Components With Torque Specifications
G06528774Courtesy of SUZUKI OF AMERICA CORP.
