Generator Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Remove engine cover.
  3. Remove accessory drive belt, see ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
  4. Disconnect "B" terminal wire (1) and connector (2) from generator (3).
  5. Remove generator (3).

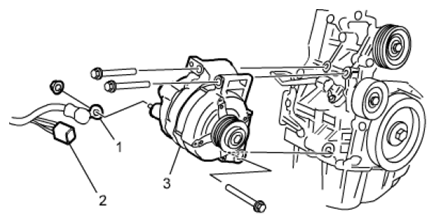

    Fig 1: Identifying Generator, B Terminal Wire And Connector
    G06528311Courtesy of SUZUKI OF AMERICA CORP.
