Generator Disassembly and Reassembly: Reassembly

Reference: GENERATOR INSPECTION

1. Press-fit drive end bearing by using special tool and hydraulic press (1).

   Special Tool

   1. 09913-76010
   Fig 1: Pressing Drive End Bearing Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.

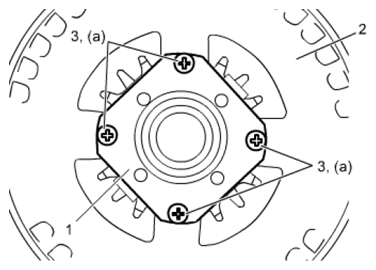

2. Install bearing retainer (1) to drive end frame (2) and tighten bearing retainer screws (3) to specified torque.

   Tightening torque

   Bearing retainer screw (a): 2.3 N.m (0.23 kg-m, 2.0 lbf-ft)

   Fig 2: Identifying Bearing Retainer, Drive End Frame And Bearing Retainer Screws

   Courtesy of SUZUKI OF AMERICA CORP.

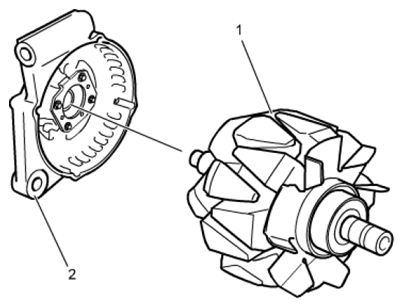

3. Install rotor (1) to drive end frame (2)
   Fig 3: Identifying Rotor And Drive End Frame

   Courtesy of SUZUKI OF AMERICA CORP.

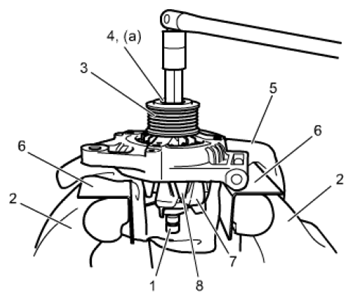

4. Hold rotor (1) by using vise (2) via clean cloth (5) and aluminum palate (6), install pulley (3) and tighten pulley nut (4) to specified torque.
   CAUTION:

   • The rotor may be damaged if it is not held in a vise in the specified method and at the indicated parts when loosening the pulley nut.
   • Be sure to hold the rotor in the vise via a clean cloth and aluminum plate at the iron parts (7). Never hold the rotor at other parts (8).

   Tightening torque

   Pulley nut (a): 110 N.m (11.2 kg-m, 81.5 lbf-ft)

   Fig 4: Tightening Pulley Nut

   Courtesy of SUZUKI OF AMERICA CORP.

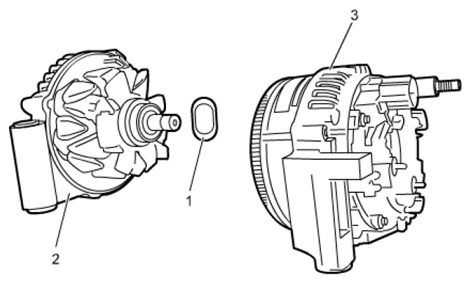

5. Install wave washer (1) and stator assembly (3) to rotor assembly (2) in alignment with matchmark drawn before disassembly.
   Fig 5: Identifying Wave Washer, Stator Assembly And Rotor Assembly

   Courtesy of SUZUKI OF AMERICA CORP.

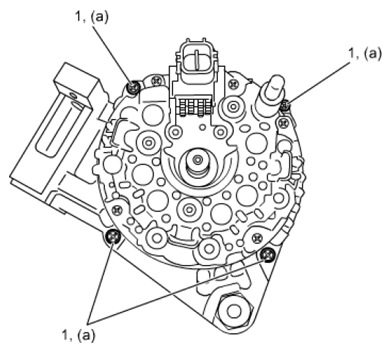

6. Tighten stator assembly bolts (1) to specified torque.

   Tightening torque

   Stator assembly bolt (a): 6.0 N.m (0.61 kg-m, 4.5 lbf-ft)

   Fig 6: Identifying Stator Assembly Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
7. Install brush holder assembly to stator assembly as follows.

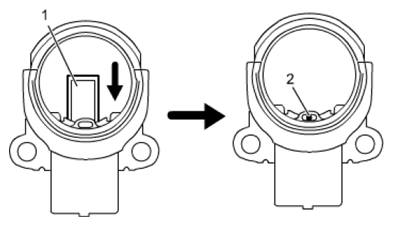

   1. Depress brush (1) and install pin (2) while brush is depressed.
      Fig 7: Identifying Brush And Pin

      Courtesy of SUZUKI OF AMERICA CORP.

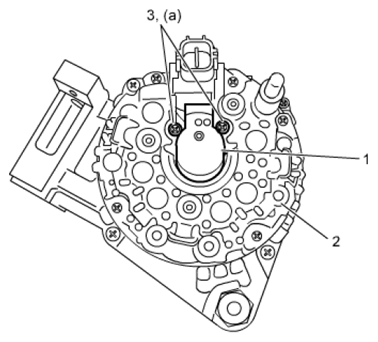

   2. Install brush holder assembly (1) to stator assembly (2) and tighten brush holder screws (3) to specified torque.

      Tightening torque

      Brush holder screw (b): 2.0 N.m (0.20 kg-m, 1.5 lbf-ft)

      Fig 8: Identifying Brush Holder Assembly, Stator Assembly And Brush Holder Screws

      Courtesy of SUZUKI OF AMERICA CORP.
   3. Remove pin from brush holder assembly.

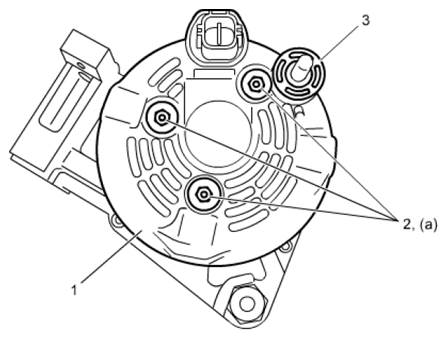

8. Install rear end cover (1) to stator assembly and tighten rear end cover nuts (2) to specified torque.

   Tightening torque

   Rear end cover nut (a): 4.5 N.m (0.46 kg-m, 3.5 lbf-ft)

9. Install terminal bushing (3).
   Fig 9: Identifying Rear End Cover And Rear End Cover Nuts

   Courtesy of SUZUKI OF AMERICA CORP.
10. Check that rotor turns smoothly.
