Rain-Sensing Wiper System Input / Output Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

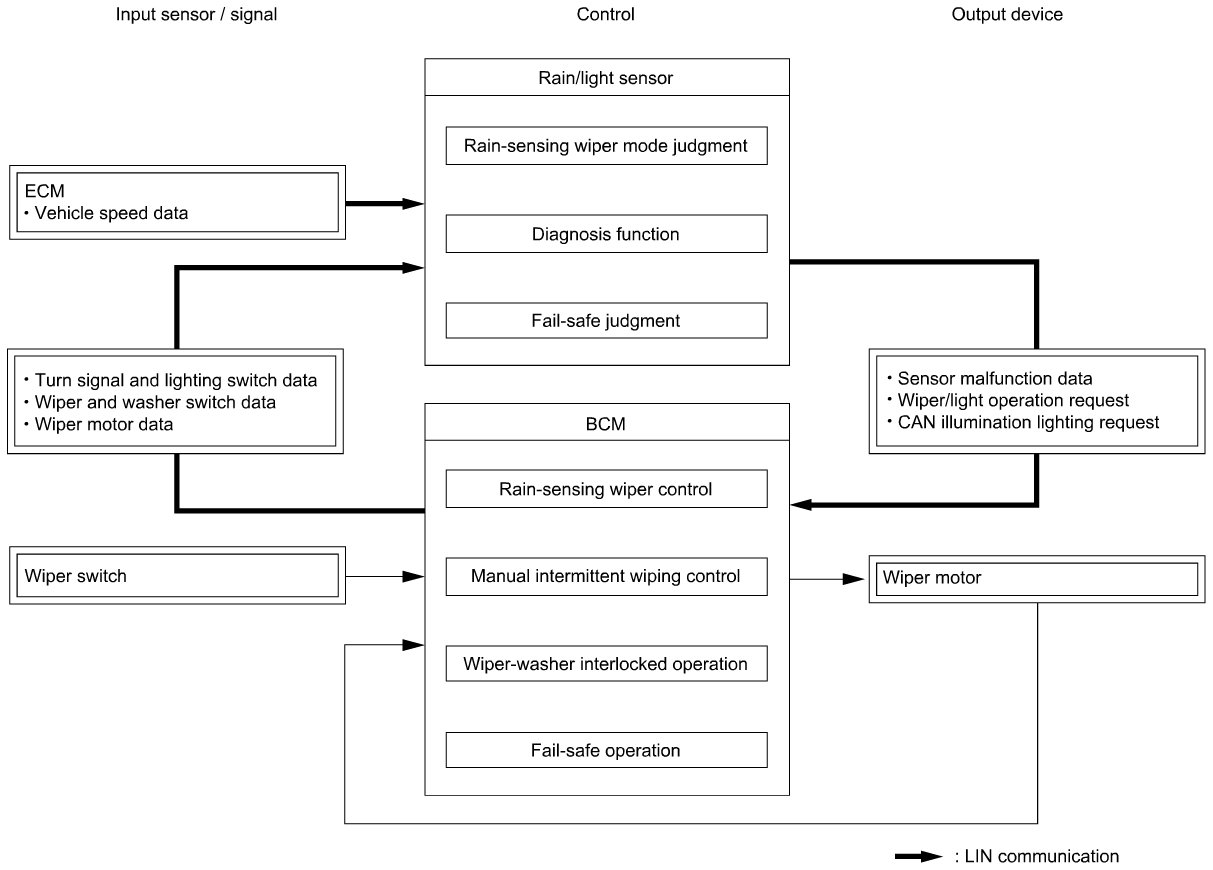

Rain-Sensing Wiper System Input / Output Block Diagram
Rain-Sensing Wiper System Input / Output Block Diagram
