Rear Window Regulator Assembly Inspection

Rear Window Regulator Assembly Inspection

Rear Window Regulator Assembly Removal and Installation

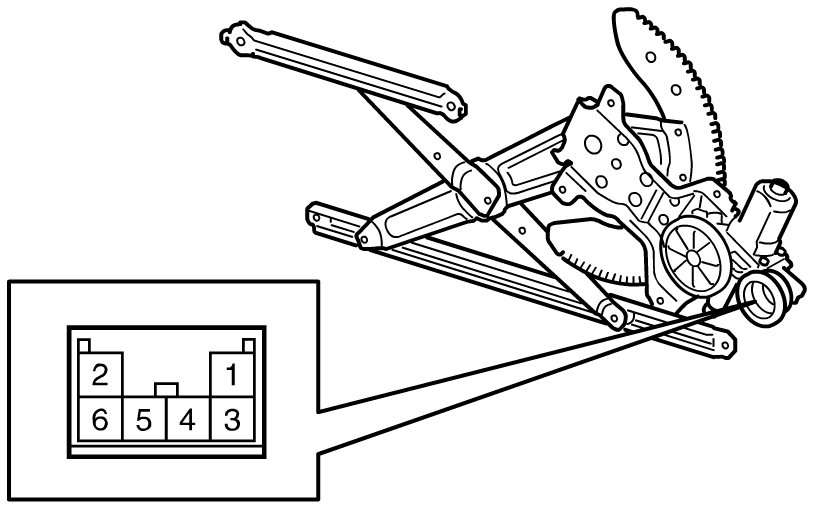

Check motor movement as follows.
1) Connect battery positive terminal "1" (UP) and connect battery negative terminal "2".
2) Connect battery positive terminal "2" (DOWN) and connect battery negative terminal "1".

If operation is not smooth, check glass run, door outer weather-strip, door inner weather-strip and grease in link. If those parts are in good condition, replace window regulator assembly.

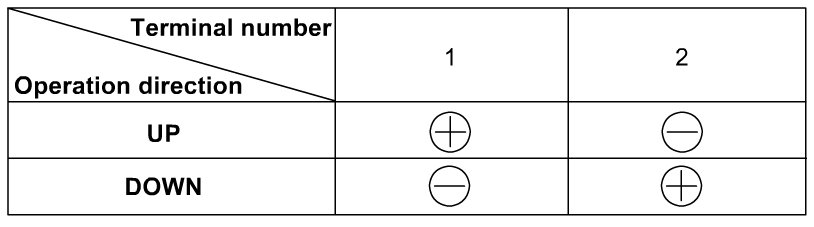

Power window motor operation
