2WD/i-AWD Switch Inspection




2WD/i-AWD Switch Inspection

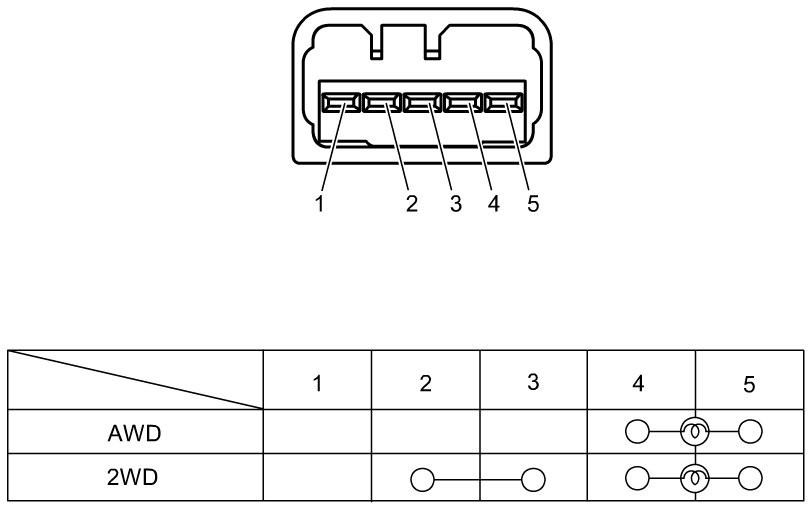

Check 2WD/i-AWD switch for continuity between terminals at each switch position.

Replace switch if check result is not as specified.
