Inspection

Gear Shift Shaft and Fork Inspection

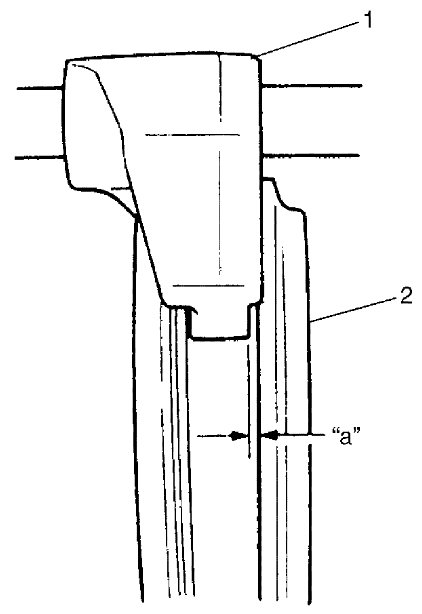

1) Using feeler gauge, check clearance between fork (1) and sleeve (2) and replace those parts if it exceeds limit.

NOTE:
For correct judgement of part replacement, carefully inspect contact portion of fork and sleeve.

Clearance "a" between fork and sleeve
Standard: 0.05 - 0.35 mm (0.002 - 0.013 in.) (Low speed)
Limit: 0.4 mm (0.016 in.)
Standard: 0.05 - 0.35 mm (0.002 - 0.013 in.) (High speed)
Limit: 0.4 mm (0.016 in.)
Standard: 0.05 - 0.35 mm (0.002 - 0.013 in.) (5th & 6th gear)
Limit: 0.4 mm (0.016 in.)
Standard: 0.05 - 0.25 mm (0.002 - 0.010 in.) (Reverse gear)
Limit: 0.4 mm (0.016 in.)





2) Insert each gear shift shaft into case and check that it moves smoothly. If it does not, correct it using oilstone, reamer or the like.
