Manual Transmission/Transaxle: Locations

Transmission Drain & Refill Locations

Tightening torque

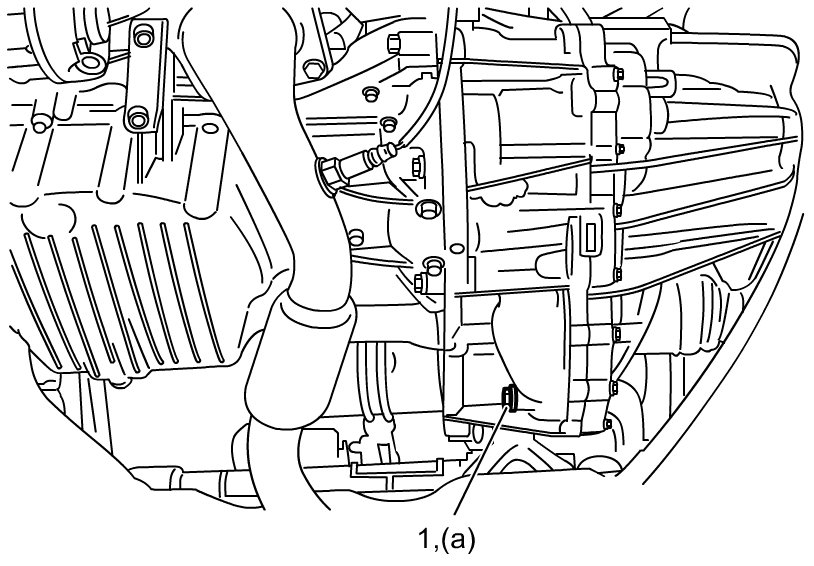

Transaxle oil drain plug (a): 35 Nm (3.6 kgf-m, 26.0 lbf-ft)






Tightening torque

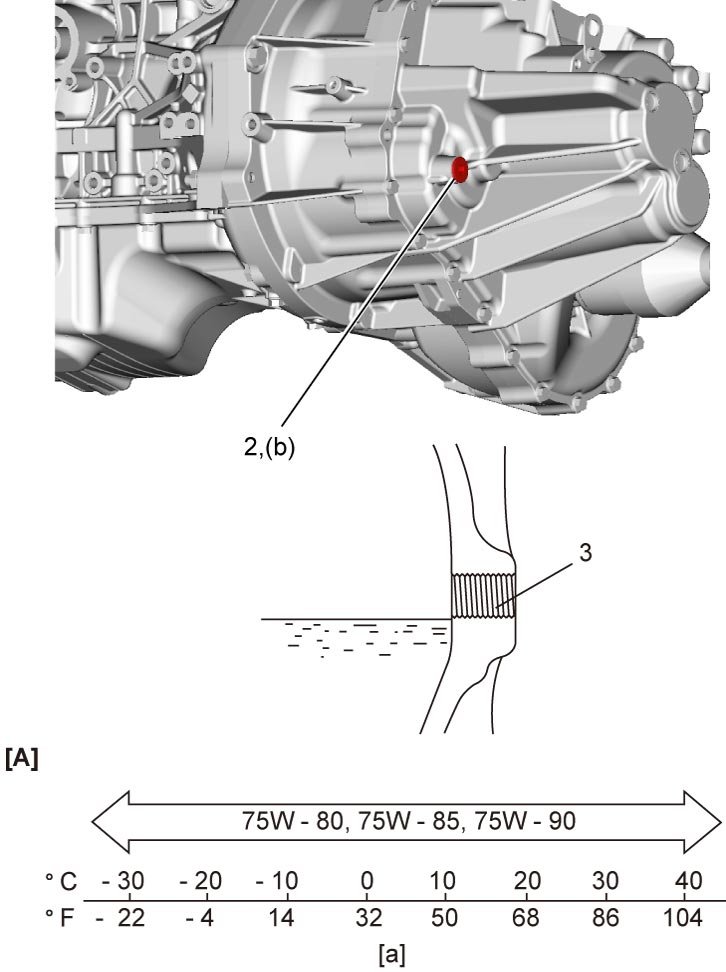

Transaxle oil level / filler plug (b): 27 Nm (2.8 kgf-m, 20.0 lbf-ft)
