Rear Differential Description




Rear Differential Description

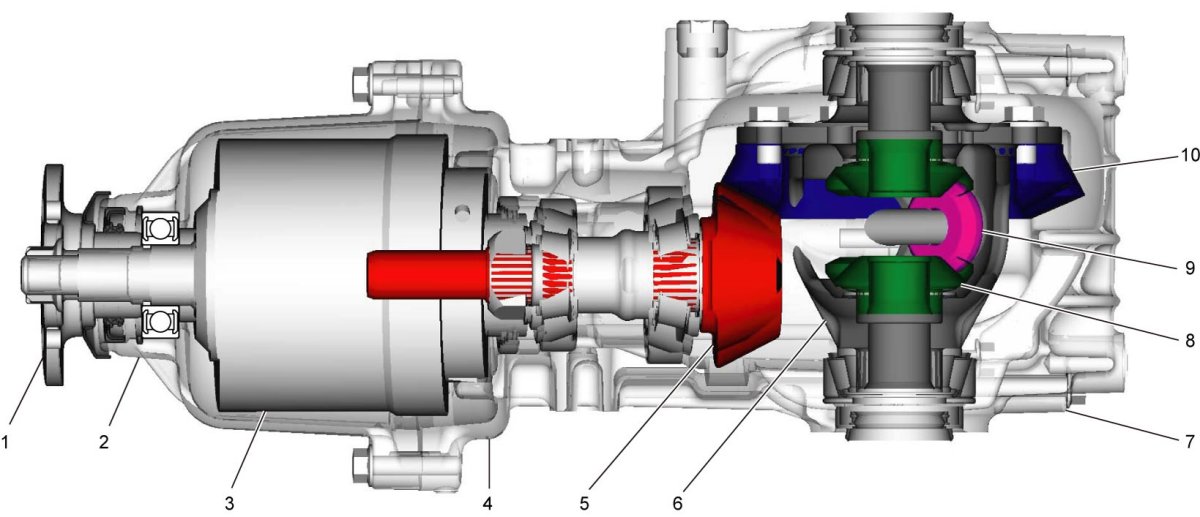

The rear differential is of a hypoid bevel pinion and gear type.

Sliding teeth are meshing with high pressure between hypoid bevel pinion and gear. Here lies the reason why use of specific hypoid gear oil is essential.
