Transmission Position Sensor/Switch: Testing and Inspection

P Position Switch Inspection

1) Remove console box. Center Console Box Removal and Installation
2) Disconnect select lever connector.

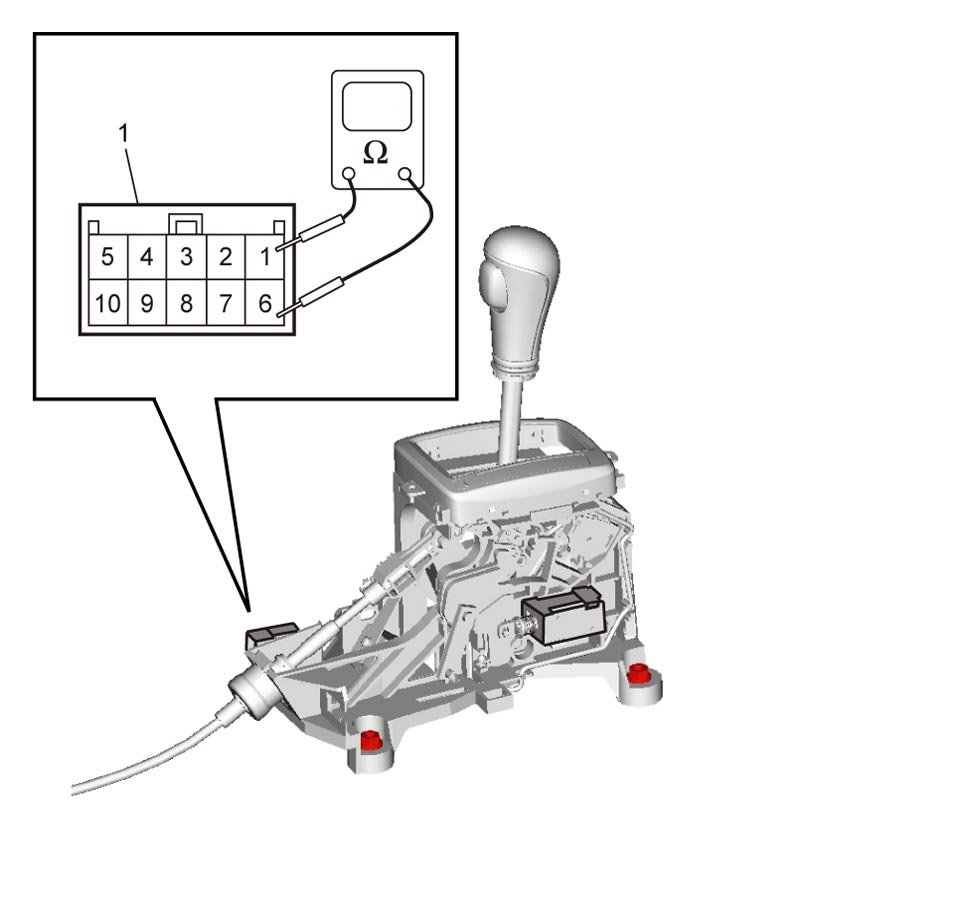

3) Check for continuity between terminals "1" and "6" of select lever connector (1). If check result is not as specified, replace select lever assembly.

P position switch specification
