Manual Mode Shift Switch Inspection




Manual Mode Shift Switch Inspection

1) Remove console box. Center Console Box Removal and Installation

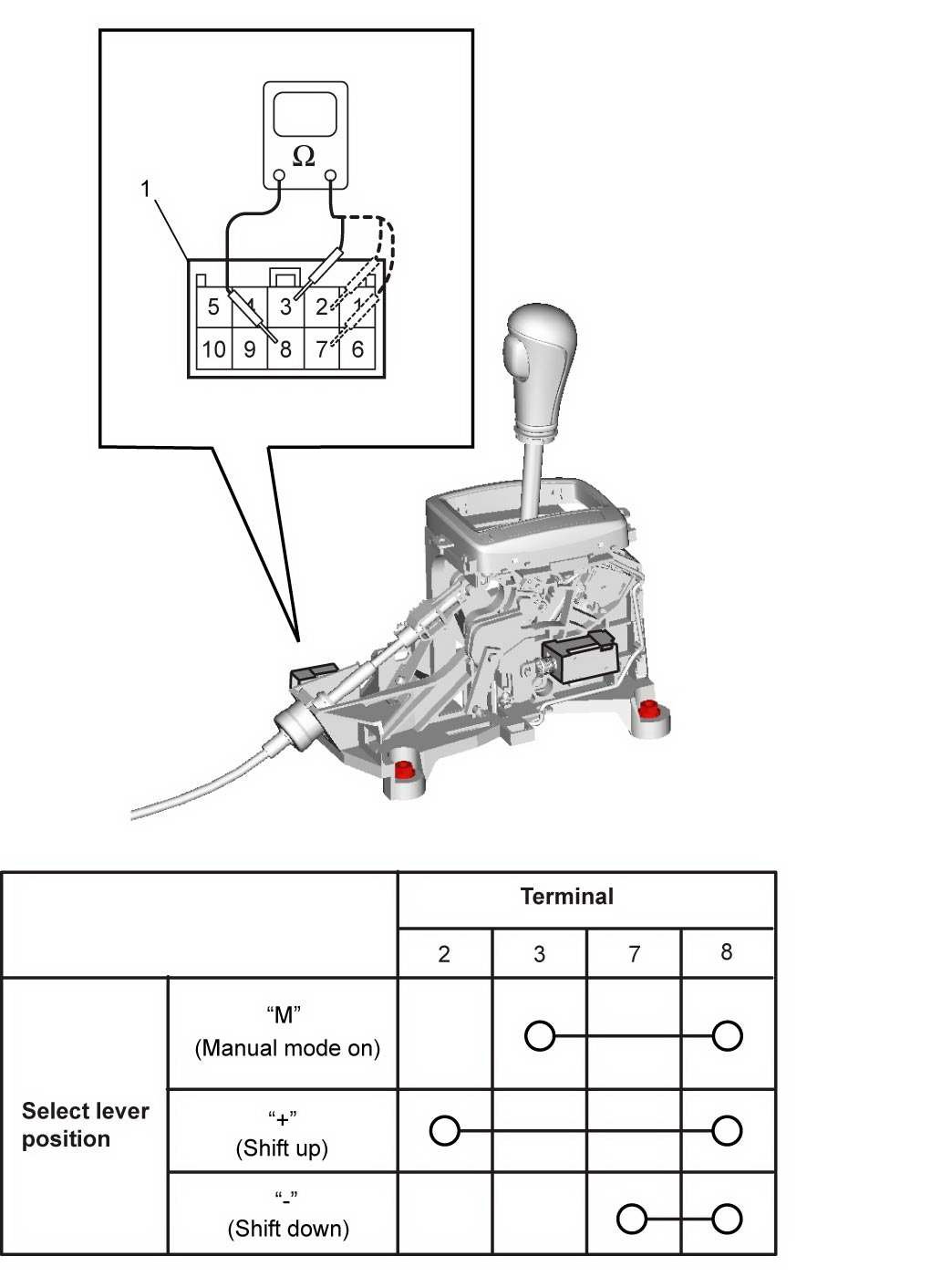

2) Disconnect select lever connector (1).
3) Check for continuity between terminals at each switch position. If check result is not as specified, replace select lever assembly.
