Shift Paddle Switch Removal and Installation




Shift Paddle Switch Removal and Installation

Removal

1) Remove steering wheel. Steering Wheel Removal and Installation

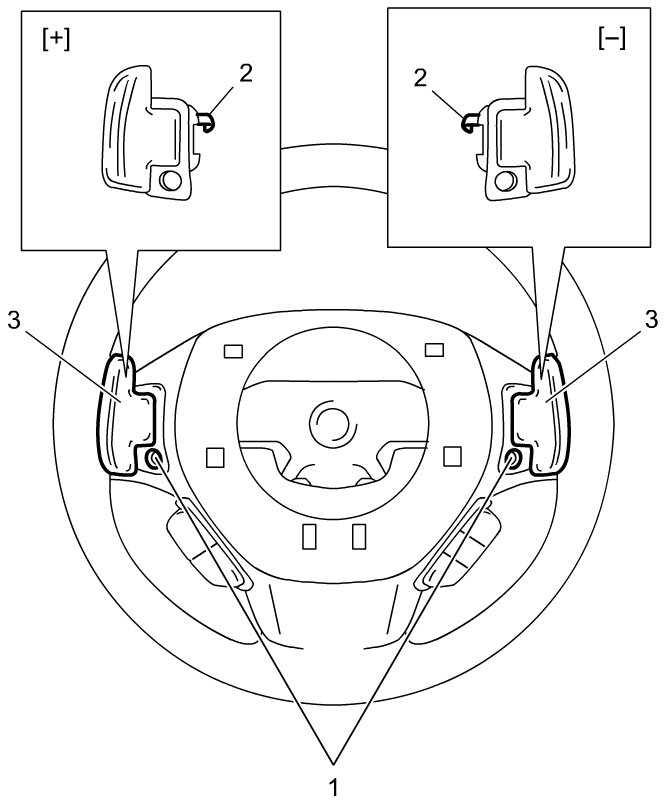

2) Remove screws (1) and release claws (2).
3) Disconnect connectors and then remove shift paddle switches (3).






Installation

Shift Paddle Switch Inspection

Reverse removal procedure.
