CPP Switch (for Cruise Control) Removal and Installation

CPP Switch (for Cruise Control) Removal and Installation

Removal

1) Confirm that ignition mode of keyless push start system is in "OFF".

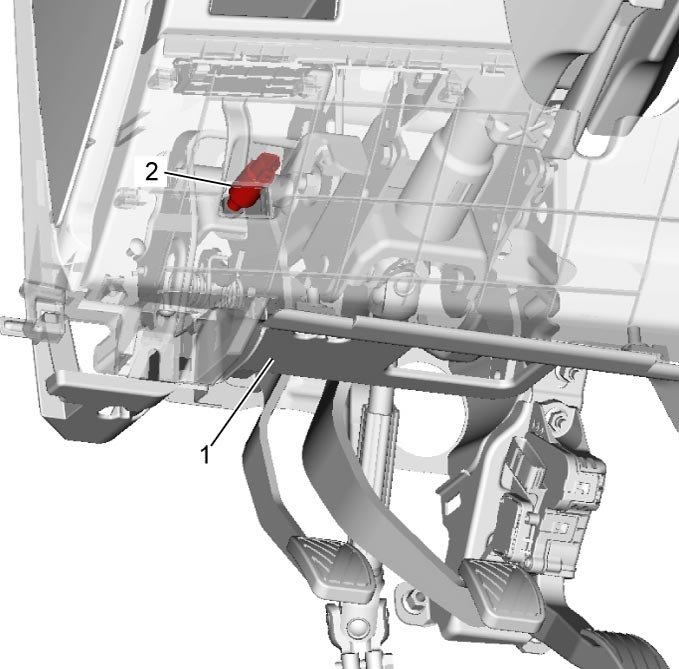

2) Remove instrument panel undercover (1).
3) Disconnect connector from CPP switch (for cruise control) (2).
4) Remove CPP switch (for cruise control) from pedal bracket.






Installation

CPP Switch (for Cruise Control) Inspection

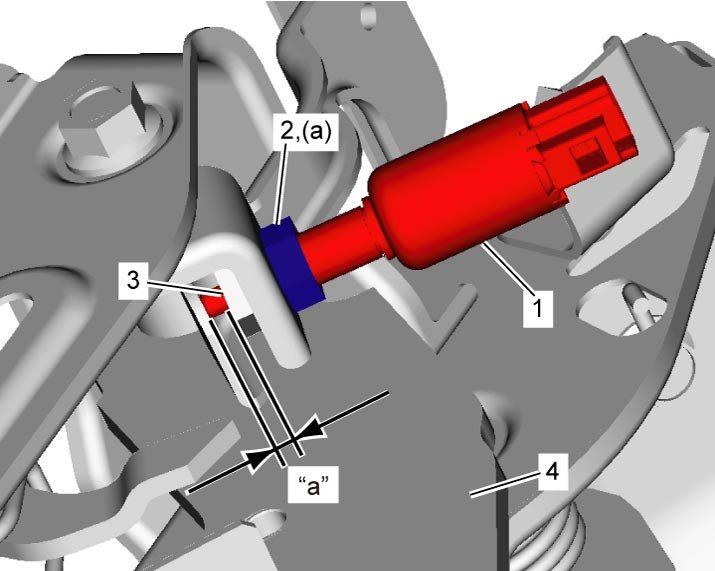

1) Install CPP switch (for cruise control) (1) to pedal bracket.
2) With clutch pedal (4) released, adjust switch position so that clearance between end (3) of thread and clutch pedal bracket is within specification.

Clearance between end of thread and clutch pedal bracket
"a": 1.6 - 2.0 mm (0.063 - 0.079 in.)

3) Tighten lock nut (2) to specified torque.

Tightening torque
CPP switch lock nut (a): 7.5 Nm (0.8 kgf-m, 5.5 lbf-ft)





4) Connect connector to CPP switch (for cruise control) securely.
5) Install instrument panel undercover.
