Symptom Related Diagnostic Procedures

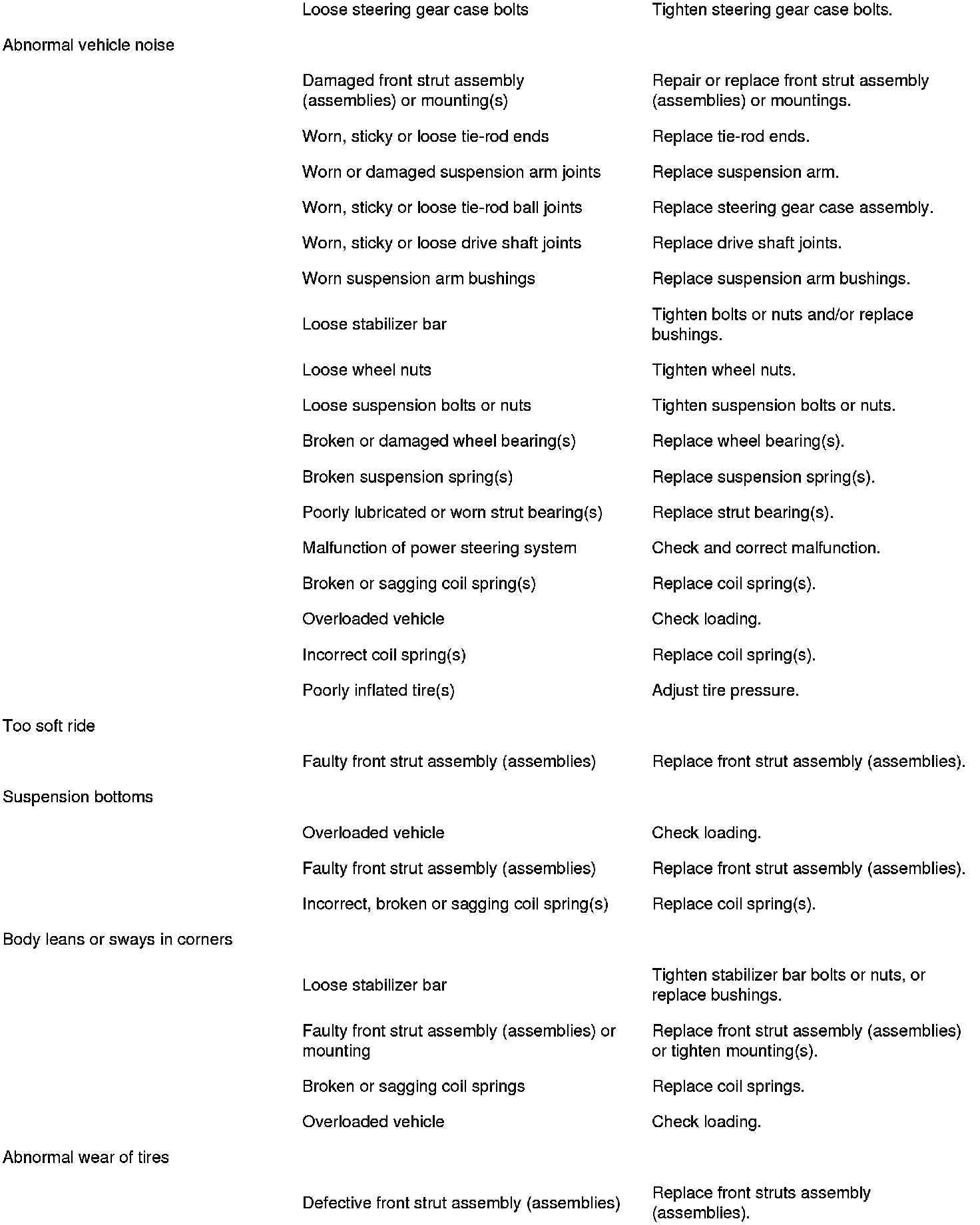

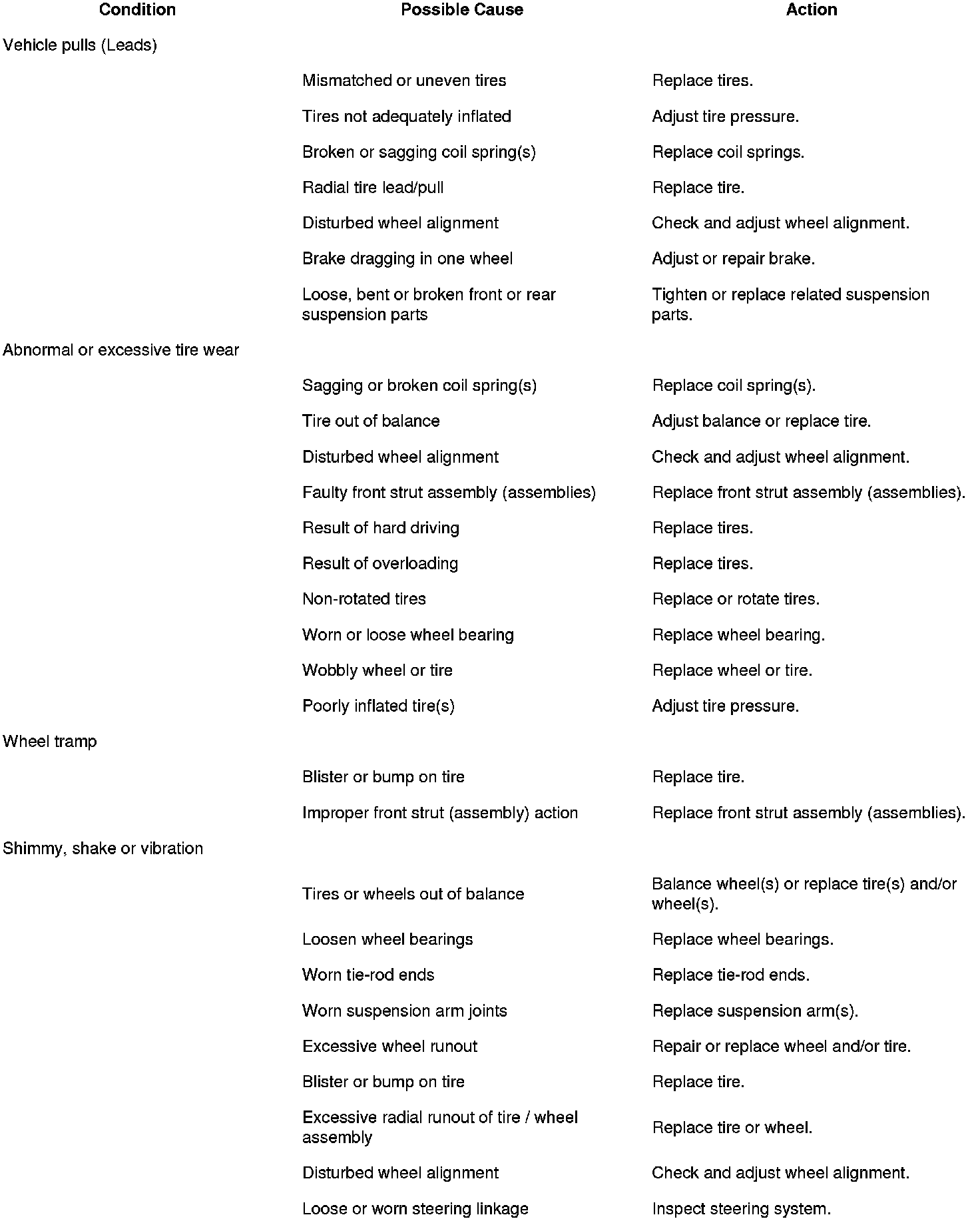

Suspension, Wheel and Tire Symptom Diagnosis
NOTE:
*1: Right-to-left trim height ("H") difference should be within 15 mm (0.6 in.) at curb weight. (This applies to both front and rear axles.)
Suspension, Wheel and Tire Symptom Diagnosis
NOTE:
*1: Right-to-left trim height ("H") difference should be within 15 mm (0.6 in.) at curb weight. (This applies to both front and rear axles.)
